Question: Given the RAM / ROM circuit shown, calculate: a ) ( 4 points ) What is the effective size? b ) ( 2 points )

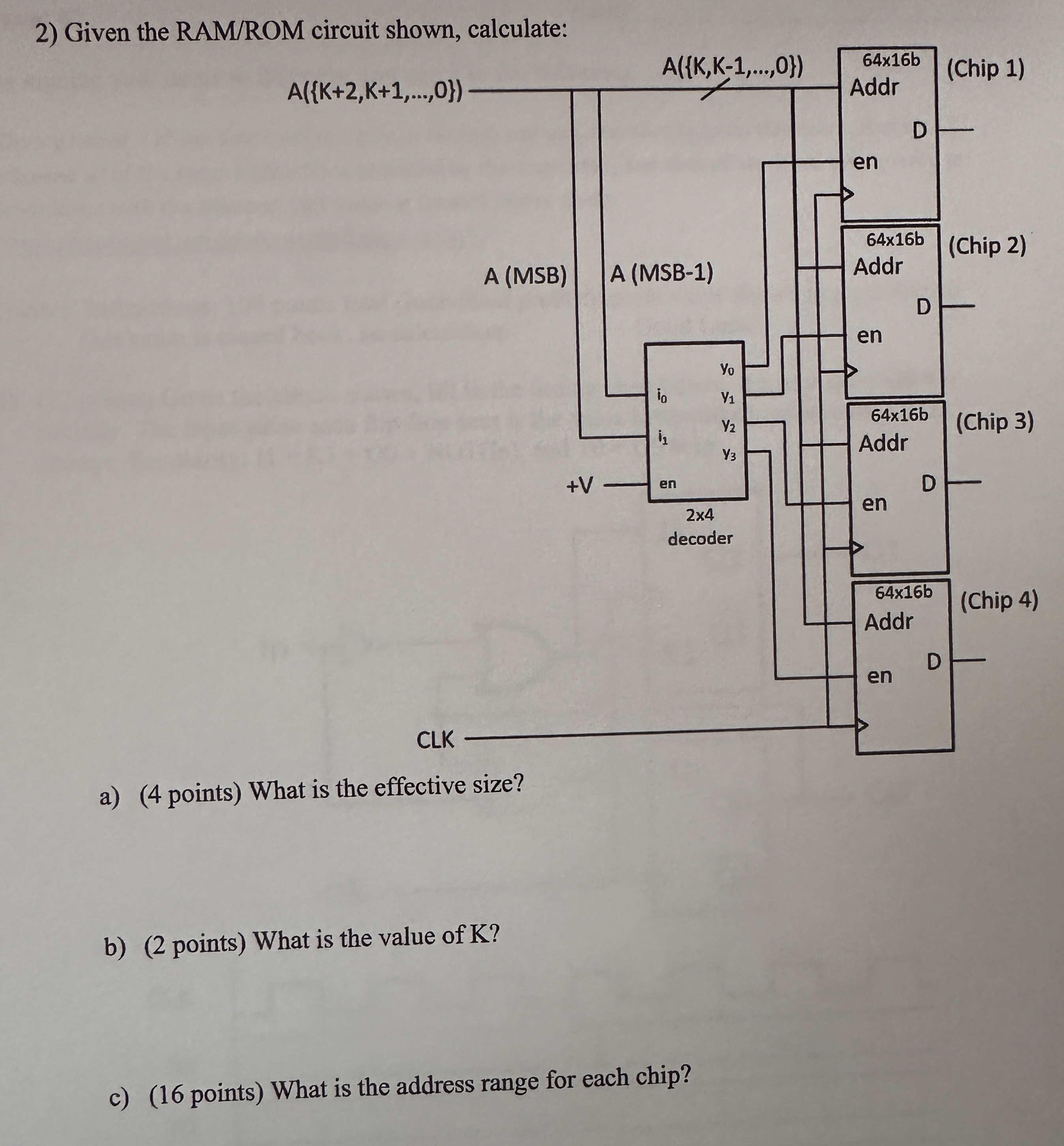

Given the RAM/ROM circuit shown, calculate:
a)(4 points) What is the effective size?
b)(2 points) What is the value of K?
c)(16 points) What is the address range for each chip?
Given the RAM / ROM circuit shown, calculate: a )

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
