Question: Given the rod configuration shown with the applied torque, what compatibility condition is applicable if you were asked to solve for the reactions at A

Given the rod configuration shown with the applied torque, what compatibility

condition is applicable if you were asked to solve for the reactions

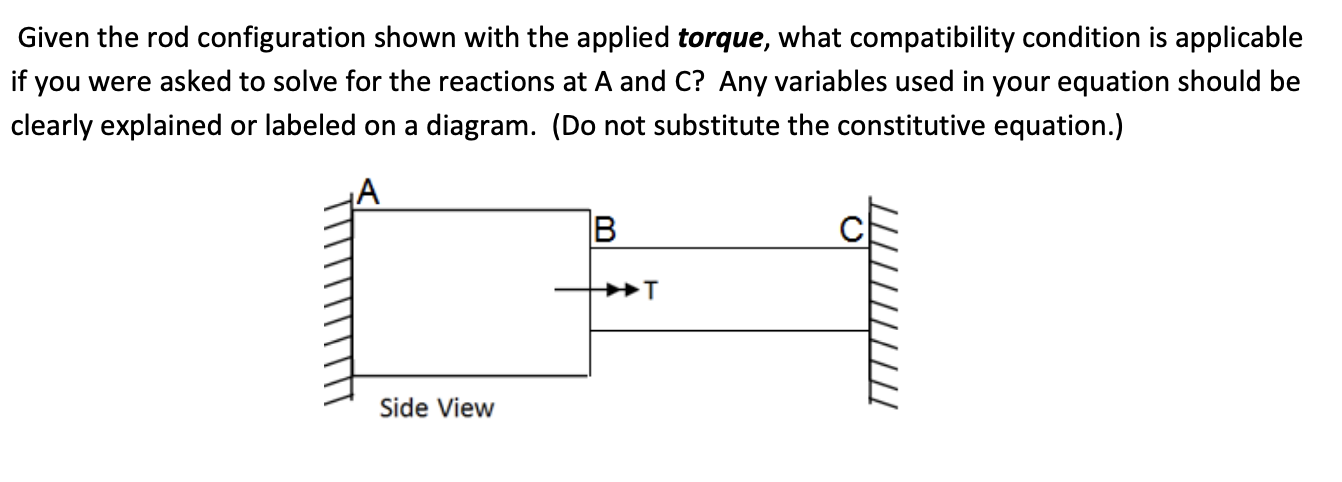

Given the rod configuration shown with the applied torque, what compatibility condition is applicable if you were asked to solve for the reactions at A and C? Any variables used in your equation should be clearly explained or labeled on a diagram. (Do not substitute the constitutive equation.) A Side View
