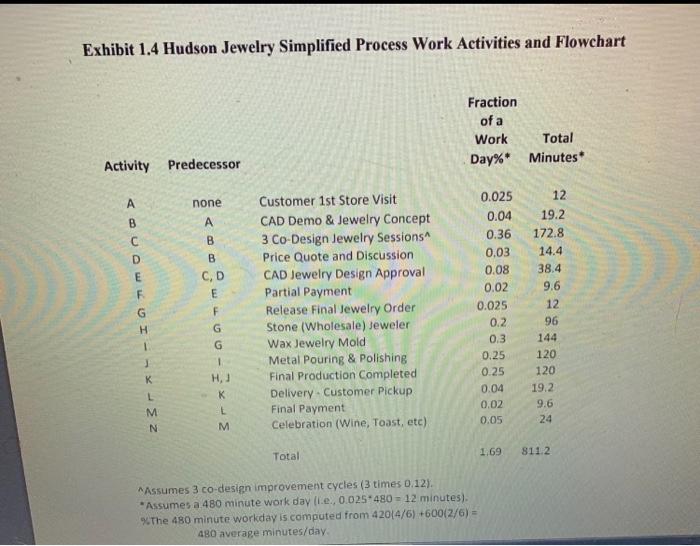

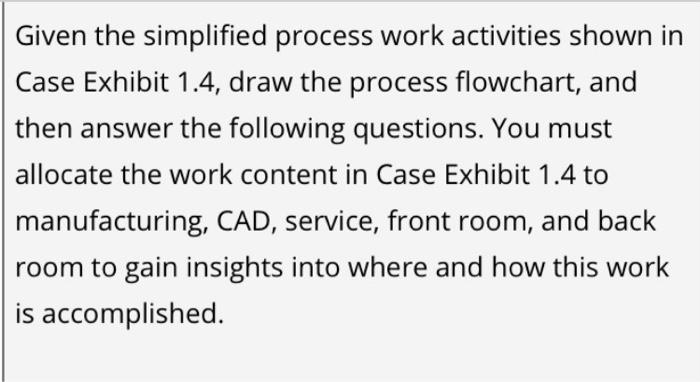

Given the simplified process work activities shown in Case Exhibit 1.4, draw the process flowchart, and then answer the following questions. You must allocate the work content in Case Exhibit 1.4 to manufacturing, CAD, service, front room, and back room to gain insights into where and how this work is accomplished. Exhibit 1.4 Hudson Jewelry Simplified Process Work Activities and Flowchart Fraction of a Work Total Day%* Minutes* Activity Predecessor none A B B D E F G H 12 19.2 172.8 14.4 38.4 9.6 B C D E F Customer 1st Store Visit CAD Demo & Jewelry Concept 3 Co-Design Jewelry Sessions Price Quote and Discussion CAD Jewelry Design Approval Partial Payment Release Final Jewelry Order Stone (Wholesale) Jeweler Wax Jewelry Mold Metal Pouring & Polishing Final Production Completed Delivery - Customer Pickup Final Payment Celebration (Wine, Toast, etc) 0.025 0.04 0.36 0.03 0.08 0.02 0.025 0.2 0.3 0.25 0.25 0.04 0.02 0.05 G G 1 12 96 144 120 120 19.2 9.6 24 H K 3-* Total 1.69 8112 Assumes 3 co-design improvement cycles (3 times 0.12). * Assumes a 480 minute work day i.e., 0.025*480 = 12 minutes). The 480 minute workday is computed from 420/4/6) +600(2/6) = 480 average minutes/day. 3. For this process, what is the total CAD time in minutes (or equivalent fraction of a day) to create one woman's codesigned wedding ring
