Question: Given the table of dependencies below, answer all four questions. Predecessor Activity A B D E F A B C D B Duration in weeks

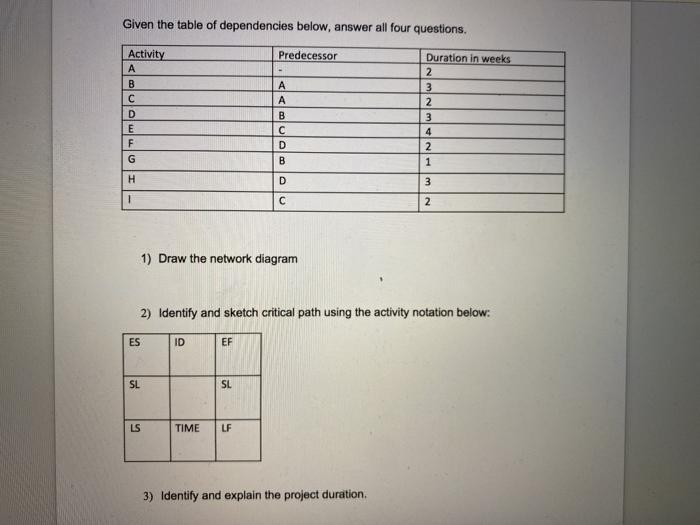

Given the table of dependencies below, answer all four questions. Predecessor Activity A B D E F A B C D B Duration in weeks 2 3 2 3 4 2 1 3 1 2 1) Draw the network diagram 2) Identify and sketch critical path using the activity notation below: ES ID EF SL SL LS TIME LF 3) Identify and explain the project duration

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
