Question: Given the truss below and using a single equation of equilibrium, determine the forces in each of the following members: HG,BC and HC. Use the

 Given the truss below and using a single equation of equilibrium,

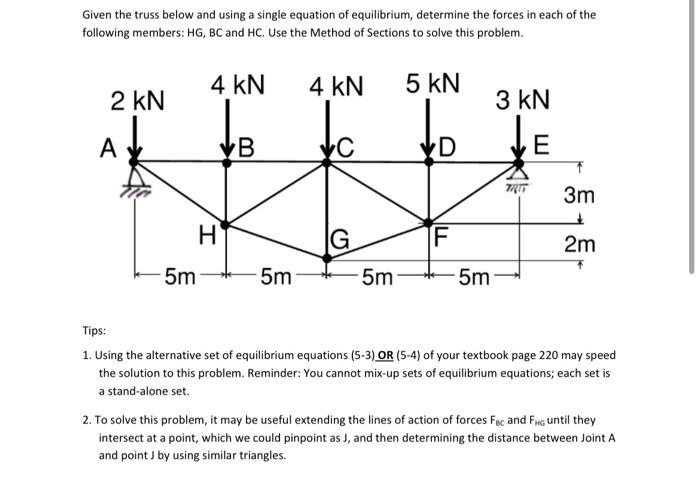

Given the truss below and using a single equation of equilibrium, determine the forces in each of the following members: HG,BC and HC. Use the Method of Sections to solve this problem. Tips: 1. Using the alternative set of equilibrium equations (53)OR(54) of your textbook page 220 may speed the solution to this problem. Reminder: You cannot mix-up sets of equilibrium equations; each set is a stand-alone set. 2. To solve this problem, it may be useful extending the lines of action of forces FBC and FHG until they intersect at a point, which we could pinpoint as J, and then determining the distance between Joint A and point J by using similar triangles
