Given

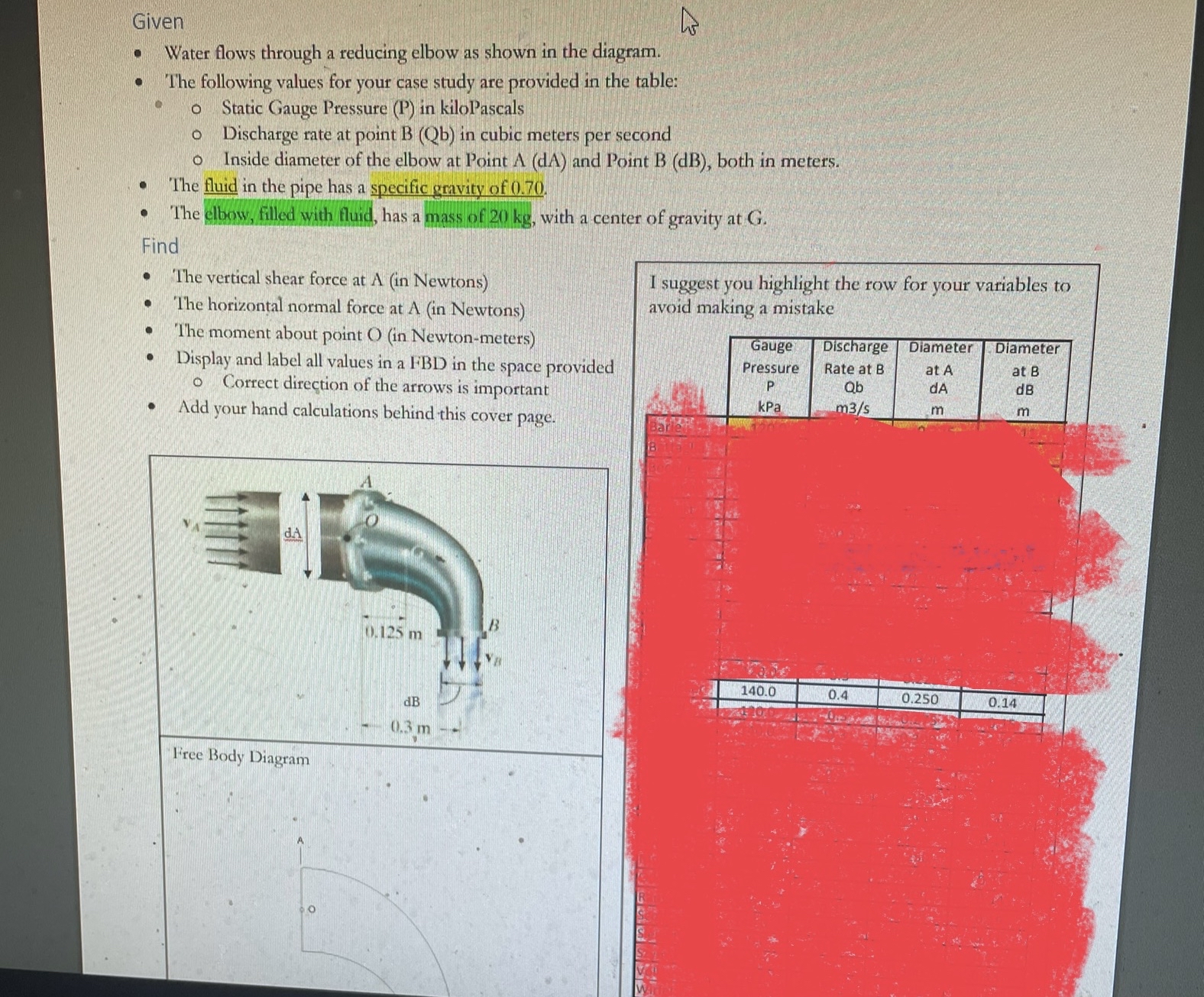

Water flows through a reducing elbow as shown in the diagram.

The following values for your case study are provided in the table:

Static Gauge Pressure $($P$)$ in kiloPascals

Discharge rate at point $B(Qb)$ in cubic meters per second

Inside diameter of the elbow at Point A $($dA$)$ and Point B $($dB$),$ both in meters.

The fluid in the pipe has a specific gravity of $0\mathrm{.}70.$

The elbow, filled with fluid, has a mass of $20kg,$ with a center of gravity at $G.$

Find

The vertical shear force at $A($in Newtons$)$

The horizontal normal force at $A($in Newtons$)$

The moment about point $O($in Newton$-$meters$)$

Display and label all values in a FBD in the space provided Correct direction of the arrows is important

Add your hand calculations behind this cover page.
