Question: GIVen: Y = 3 8 6 mPa T = 2 . 5 k N * m ; M = 1 . 3 k N *

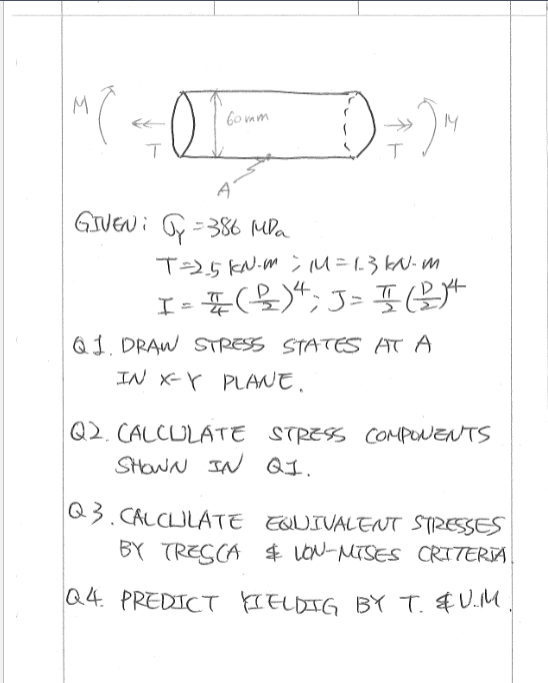

GIVen:
Y=386mPa
T=2.5kN*m;M=1.3kN*m
I=4(D2)4;J=2(D2)4
Q1. DRAw StReSs states at A
IN x-Y PLANE.
Q2. calclulate stress components
SHown IN Q1.
Q3. calclulate equivalent stReSSES
BY TRESCA and vON-MISES CRITERA.
Q4. PREDICT YIELDIG BY T. and U.M.
GIVen: Y = 3 8 6 mPa T = 2 . 5 k N * m ; M = 1 .

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
