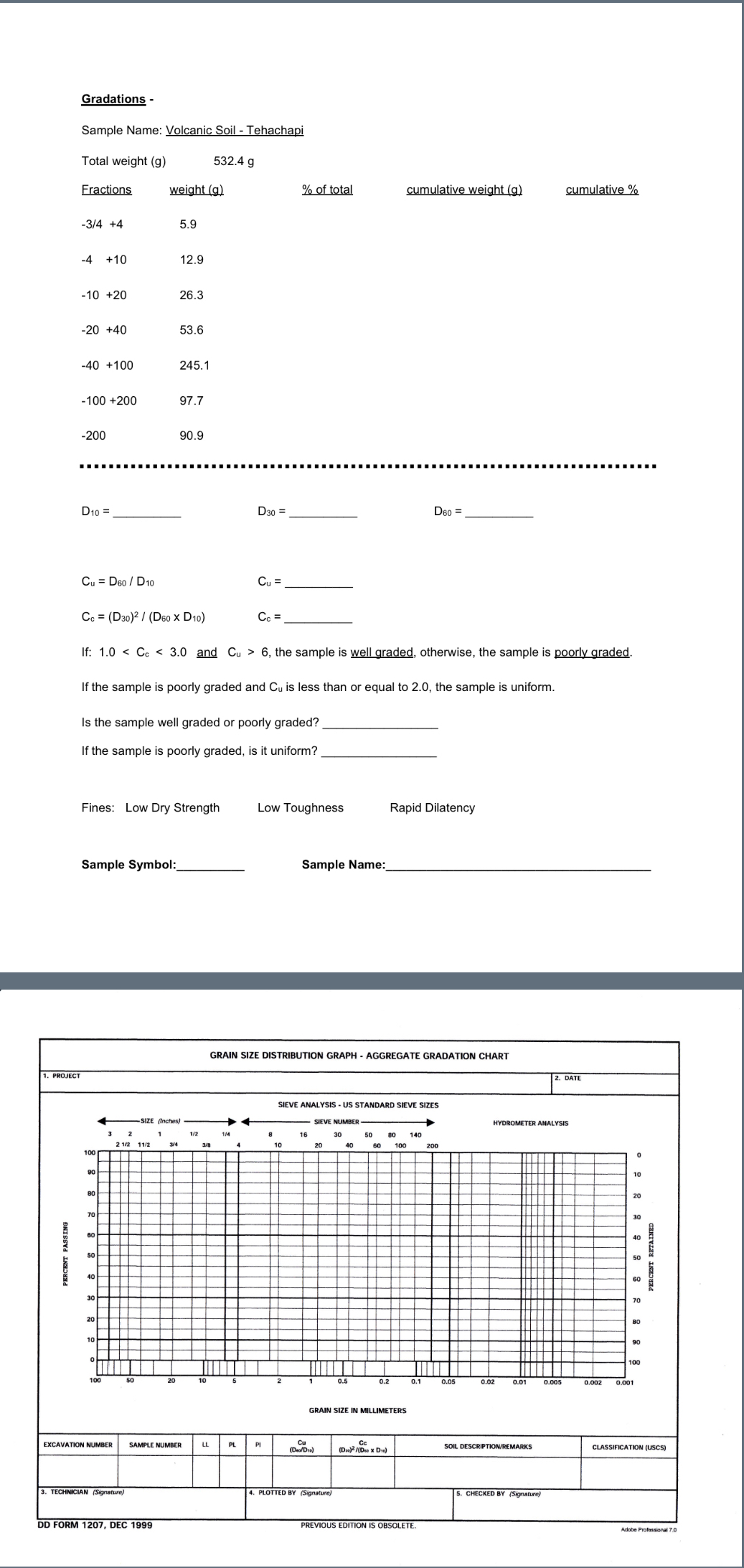

Gradations $-$

Sample Name: Volcanic Soil $-$ Tehachapi

$\backslash$table$[[$Total weigh,,,,$],[$Eractions$,$weight $($ g $),\%$ of total,cumulative weight $($g$),$cumulative $\%],[-\frac{3}{4}+4,5\mathrm{.}9,,,],[-4+10,12\mathrm{.}9,,,],[-10+20,26\mathrm{.}3,,,],[-20+40,53\mathrm{.}6,,,],[-40+100,245\mathrm{.}1,,,],[-100+200,97\mathrm{.}7,,,],[-200,90\mathrm{.}9,,,]]$

$D_{10}=$

$D_{30}=$

$D_{60}=$

$C_u=\frac{D_{60}}{D_{10}}$

$C_u=$

$C_c=\frac{(D_{30}{)}^2}{D_{60}{D}_{10}}$

$C_c=$

If: $C_u>6C_{u}1\mathrm{.}0$ and $C_u>6,$ the sample $is$ well graded, otherwise, the sample $is$ poorly graded.

$If$ the sample $is$ poorly graded and $C_{u}is$ less than $or$ equal $to2\mathrm{.}0,$ the sample $is$ uniform.

$Is$ the sample well graded $or$ poorly graded?

$If$ the sample $is$ poorly graded, $isit$ uniform?

Fines: Low Dry Strength

Low Toughness

Rapid Dilatency

Sample Symbol

Sample Name Please use the pages to write your answers in$.$ Just fill in the blanks. Also please draw out the graph neatly and fill in the blanks for soil description and classification.
