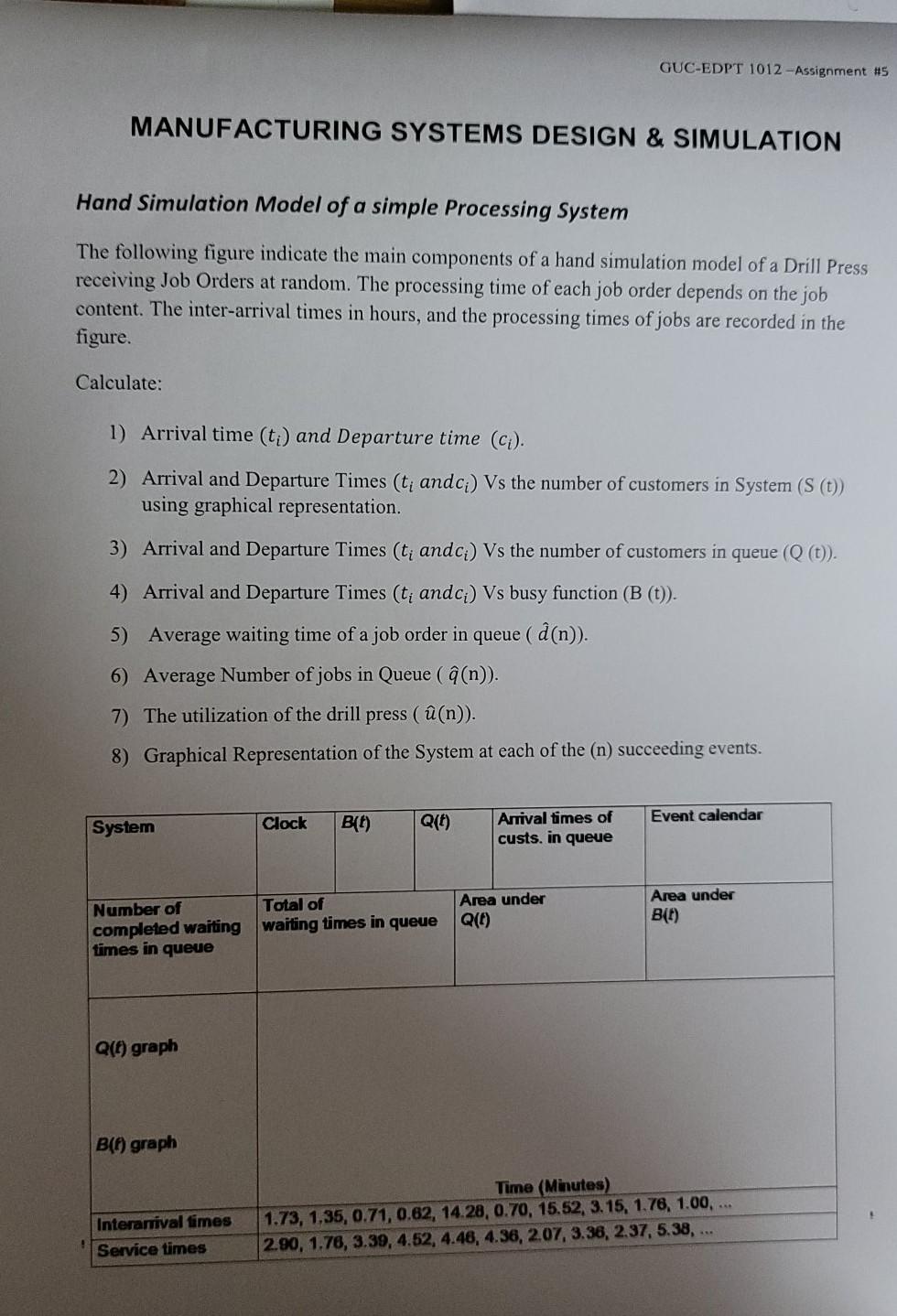

GUC-EDPT 1012 - Assignment #5 MANUFACTURING SYSTEMS DESIGN & SIMULATION Hand Simulation Model of a simple Processing System The following figure indicate the main components of a hand simulation model of a Drill Press receiving Job Orders at random. The processing time of each job order depends on the job content. The inter-arrival times in hours, and the processing times of jobs are recorded in the figure. Calculate: 1) Arrival time (ti) and Departure time (C). 2) Arrival and Departure Times (ti andci) Vs the number of customers in System (S (t)) using graphical representation. 3) Arrival and Departure Times (t; andc:) Vs the number of customers in queue (Q t)). 4) Arrival and Departure Times (t andc:) Vs busy function (B (t)). 5) Average waiting time of a job order in queue ( (n)). 6) Average Number of jobs in Queue (@(n)). 7) The utilization of the drill press ((n)). 8) Graphical Representation of the System at each of the (n) succeeding events. Clock System B(t) Q(6) Event calendar Amival times of custs, in queue Area under QO Area under B(1) Number of Total of completed waiting waiting times in queue times in queue Q(H) graph B(H graph Interarrival times Service times Time (Minutes) 1.73, 1,35, 0.71, 0.62, 14.28, 0.70, 15.52, 3.15, 1.76, 1.00,... 2.90, 1.76, 3.39, 4.52, 4.46, 4.36, 2.07, 3.36, 2.37, 5.38
