Question: Half-Open Position (45deg ) Pipe inner diameter =1.20cm Computed pipe area = cm^(2) Average z_(1)= Vol= ml Time =

Half-Open Position

(45\\\\deg )

\ Pipe inner diameter

=1.20cm

\ Computed pipe area

=

cm^(2)

\ Average

z_(1)=

Vol=

ml

\ Time

=

sec

\ Computed

Q=

c(m^(3))/(sec)

\ Computed

v=

c(m)/(sec)

\ Using Bernoulli's Principle, plot and label lines of elevation head, pressure head, velocity head, total head, and head loss.\ VALVE OPEN

45\\\\deg

$Half-Open Position (45\\\\deg ) \ Pipe inner$

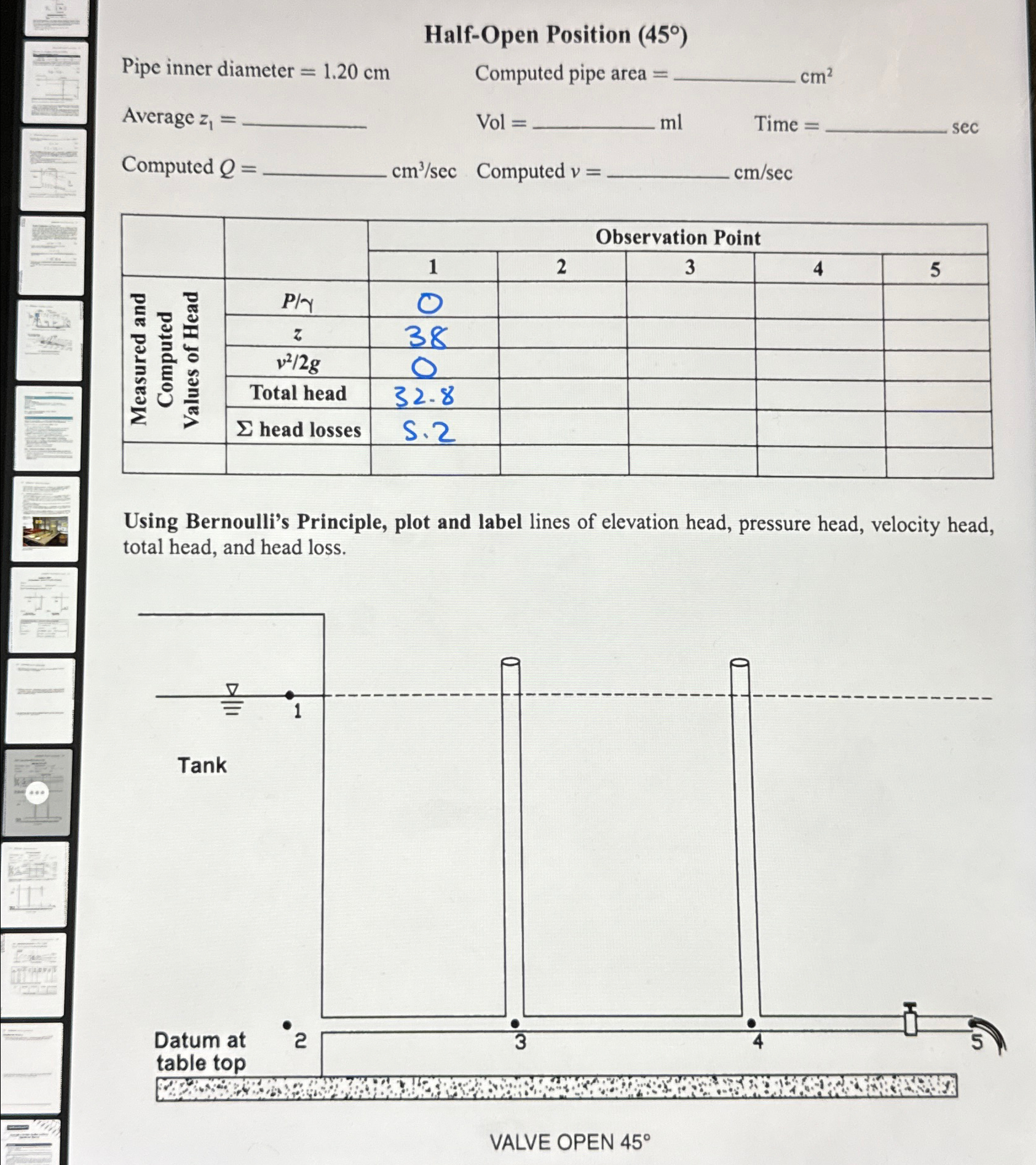

Half-Open Position (45) Pipe inner diameter =1.20cm Average z1= Computed Q= cm3/sec Computed pipe area = cm2 Vol= ml Computed v= cm/sec Using Bernoulli's Principle, plot and label lines of elevation head, pressure head, velocity head, total head, and head loss. VHLVE UTCIV 40

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
