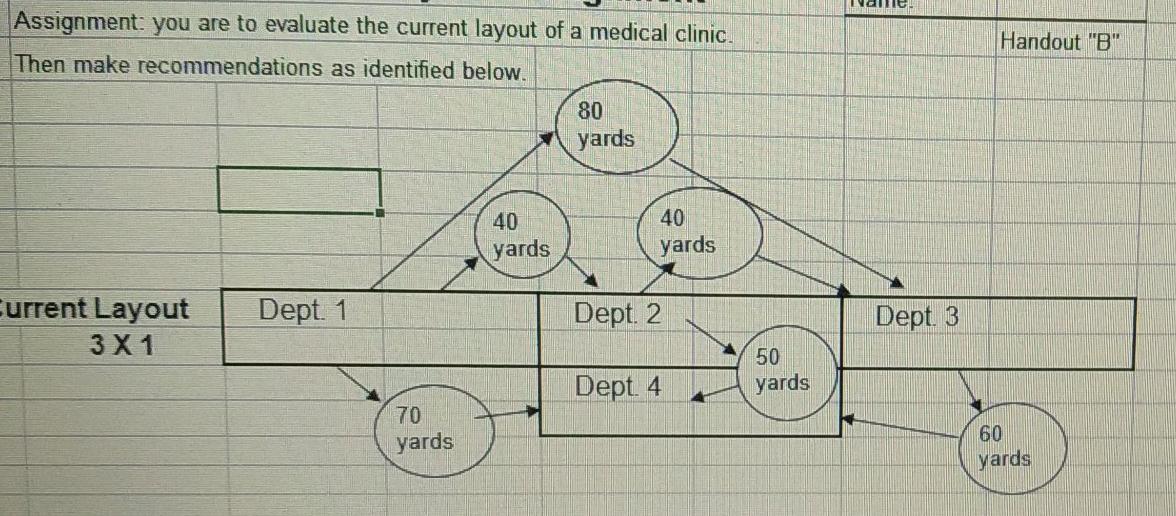

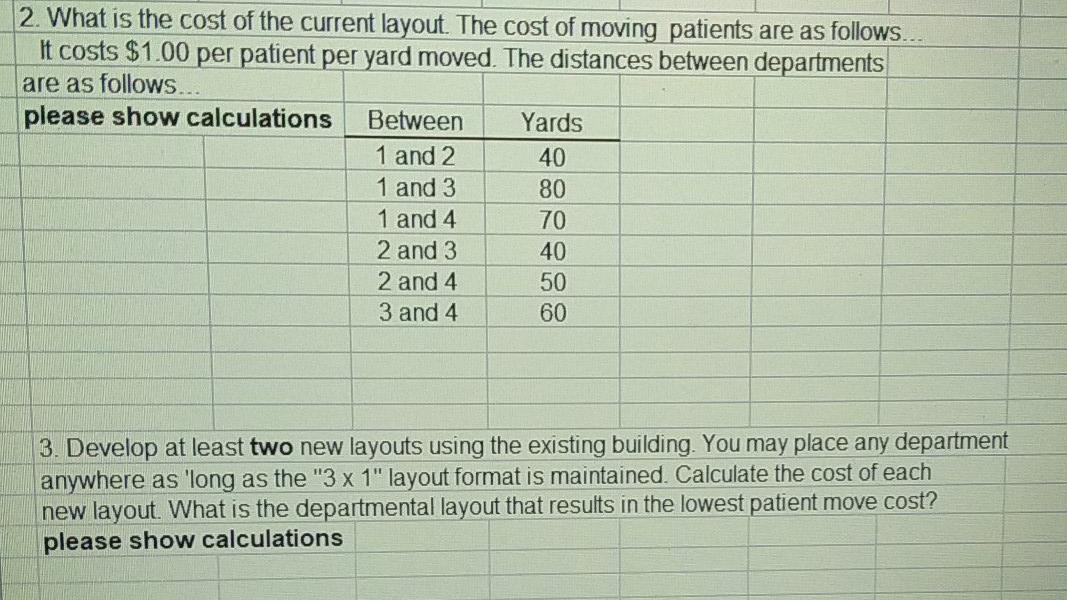

Handout "B" Assignment: you are to evaluate the current layout of a medical clinic. Then make recommendations as identified below. 80 yards 40 yards 40 yards Current Layout 3 X 1 Dept. 1 Dept. 2 Dept 3 50 yards Dept. 4 4 70 yards 60 yards Number of Patients Moved per day 1 From Dept. 1 2 3 10 4 25 2 10 To Department 3 10 15 4 55 60 15 SA 25 30 40 1. Develop a consolidated " From-To" move matrix for the above scenario. 1 2 3 4 1 2 3 4 2. What is the cost of the current layout. The cost of moving patients are as follows.. It costs $1.00 per patient per yard moved. The distances between departments are as follows... please show calculations Between Yards 1 and 2 40 1 and 3 80 1 and 4 70 2 and 3 40 2 and 4 50 3 and 4 60 3. Develop at least two new layouts using the existing building. You may place any department anywhere as 'long as the "3 x 1" layout format is maintained. Calculate the cost of each new layout. What is the departmental layout that results in the lowest patient move cost? please show calculations
