Question: hello experts, could you help me with this problem, thank you. Activity 1 : Use the method of nodes to determine the force in each

hello experts, could you help me with this problem, thank you.

Activity

1

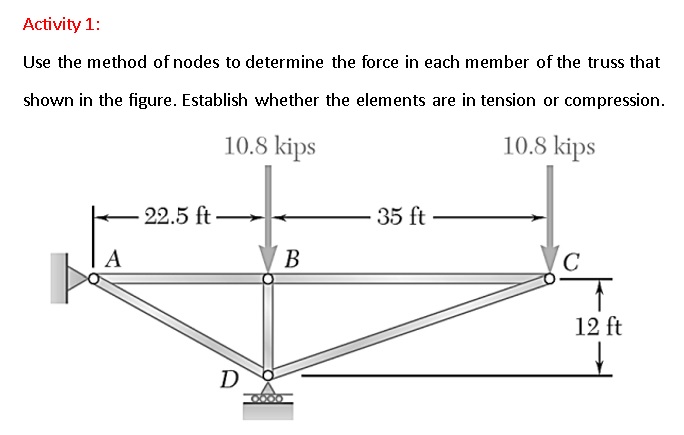

Use the method of nodes to determine the force in each member of the truss that shown in the figure. Establish whether the elements are in tension or compression.

hello experts, could you help me with this

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
