HELLO,

Part 2: (18 marks)

A small business has five departments, Accounting, Sales, Purchasing, Production, and IT. The number of host addresses needed in each department is 6, 50, 15, 30, and 4, respectively. The subnet between the two routers needs two host addresses. The classful address assigned to the business is 205.16.X.0. {X has to be replaced with the following values based on the first letter of your first name A to E: 18, F to J: 27, K to O: 45, P to T: 54, U to Z: 63. For example, if the name is John Doe then X = 27, i.e. 212.20.27.0}

Based on the BELOW specifications, do a variable subnet design and fill the information in the tables below.

pls, fill in the blanks ASSUMMING my name starts with A=18

Subnet Name ____

Subnet Mask (CIDR)_______

Network Address____

BroadCast Address_____

First Host Address______

Last Host Address_______

Please LABEL the Variable Subnet Design

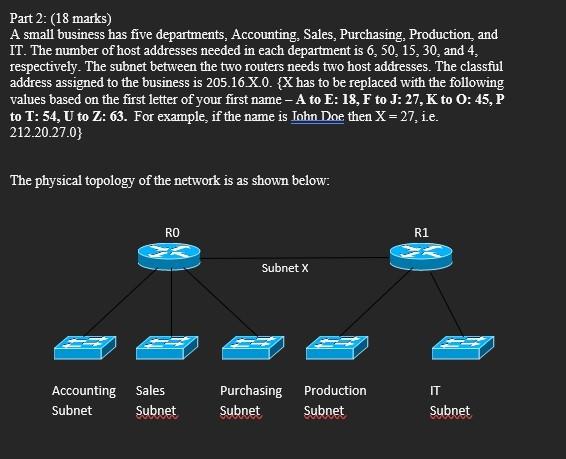

Part 2: (18 marks) A small business has five departments, Accounting, Sales, Purchasing, Production, and IT. The number of host addresses needed in each department is 6,50,15,30, and 4 , respectively. The subnet between the two routers needs two host addresses. The classful address assigned to the business is 205.16X.0. {X has to be replaced with the following values based on the first letter of your first name - A to E:18,F to J:27,K to 0:45,P to T: 54, U to Z: 63. For example, if the name is Iohn Doe then X=27, i.e. 212.20.27.0} The physical topology of the network is as shown below
