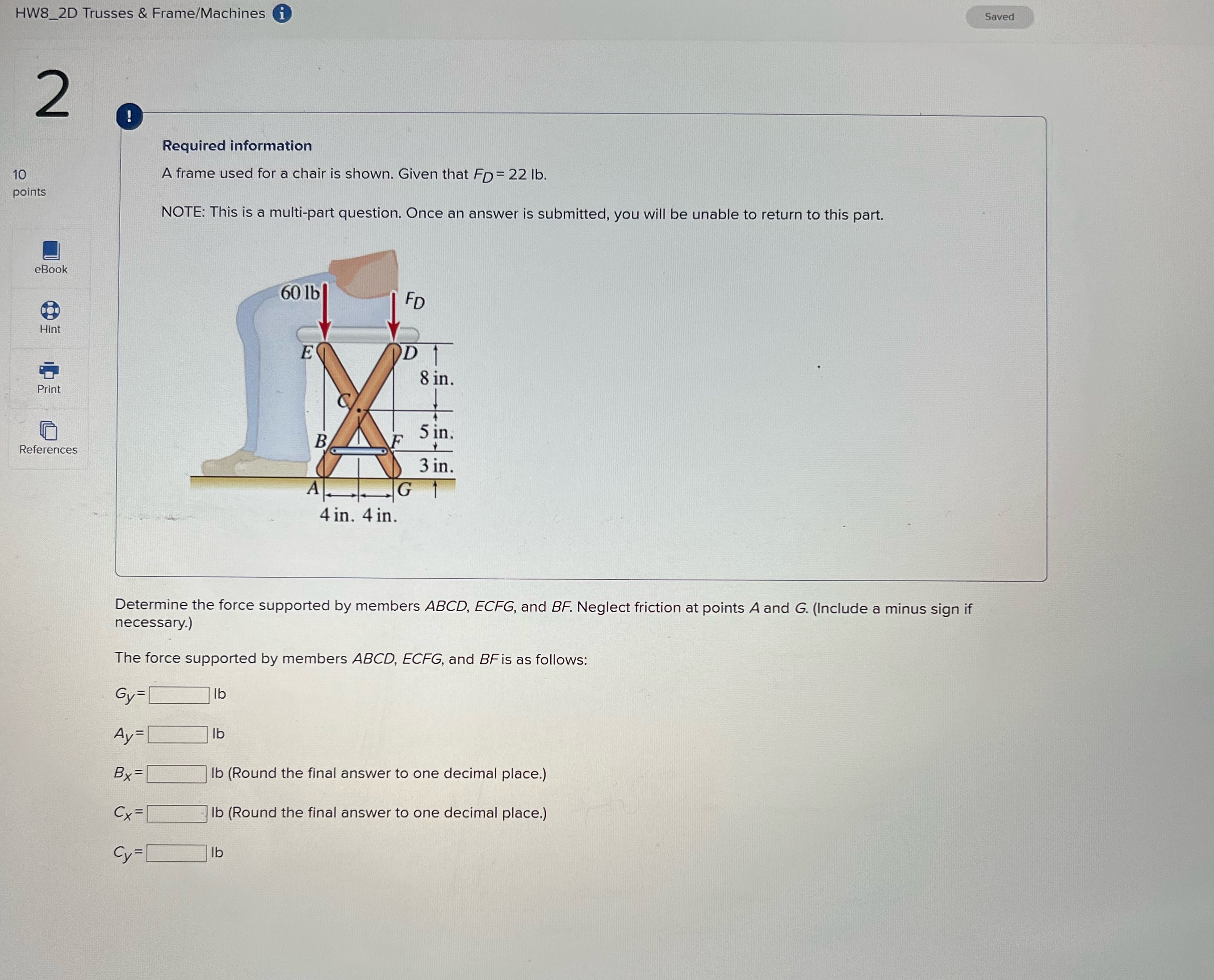

HW8_2D Trusses & Frame/Machines i Saved 2 Required information 10 A frame used for a chair is shown. Given that FD = 22 lb. points NOTE: This is a multi-part question. Once an answer is submitted, you will be unable to return to this part. Book 60 1b FD Hint E D 8 in. Print S in. References 3 in. G 4 in. 4 in. Determine the force supported by members ABCD, ECFG, and BF. Neglect friction at points A and G. (Include a minus sign if necessary.) The force supported by members ABCD, ECFG, and BF is as follows: Gy = [ Ay =[ 1lb Bx = lb (Round the final answer to one decimal place.) Cx =lb (Round the final answer to one decimal place.) Cy=1b
