help me create this

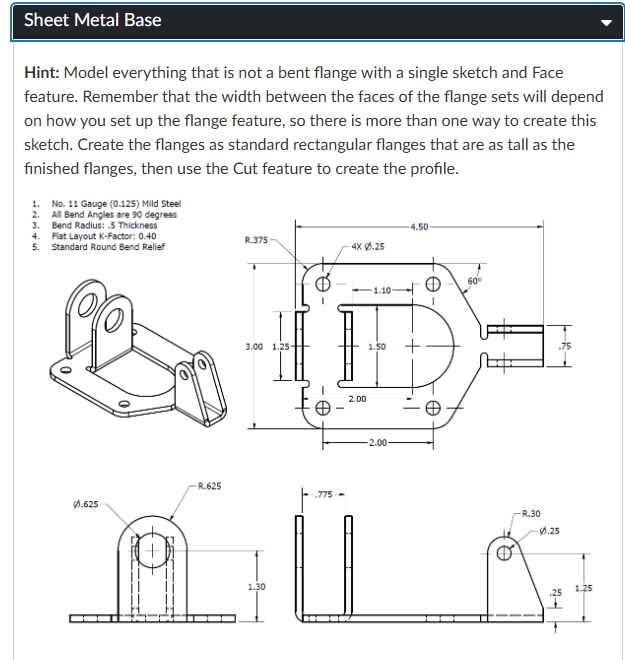

Sheet Metal Base Hint: Model everything that is not a bent flange with a single sketch and Face feature. Remember that the width between the faces of the flange sets will depend on how you set up the flange feature, so there is more than one way to create this sketch. Create the flanges as standard rectangular flanges that are as tall as the finished flanges, then use the Cut feature to create the profile. No. 11 Gauge (0.125) Mild Steel All Bend Angles are 90 degrees Bend Radius: .5 Thickness 4.50 in a w Flat Layout K-Factor: 0.40 Standard Round Bend Relief R.375 -4X 2.25 60 -1.10- 3.00 1.25 1.50 .75 O I 2.00 - ED -2.00 R.625 - .775 - .625 R.30 ).25 1.30 25 1.25
