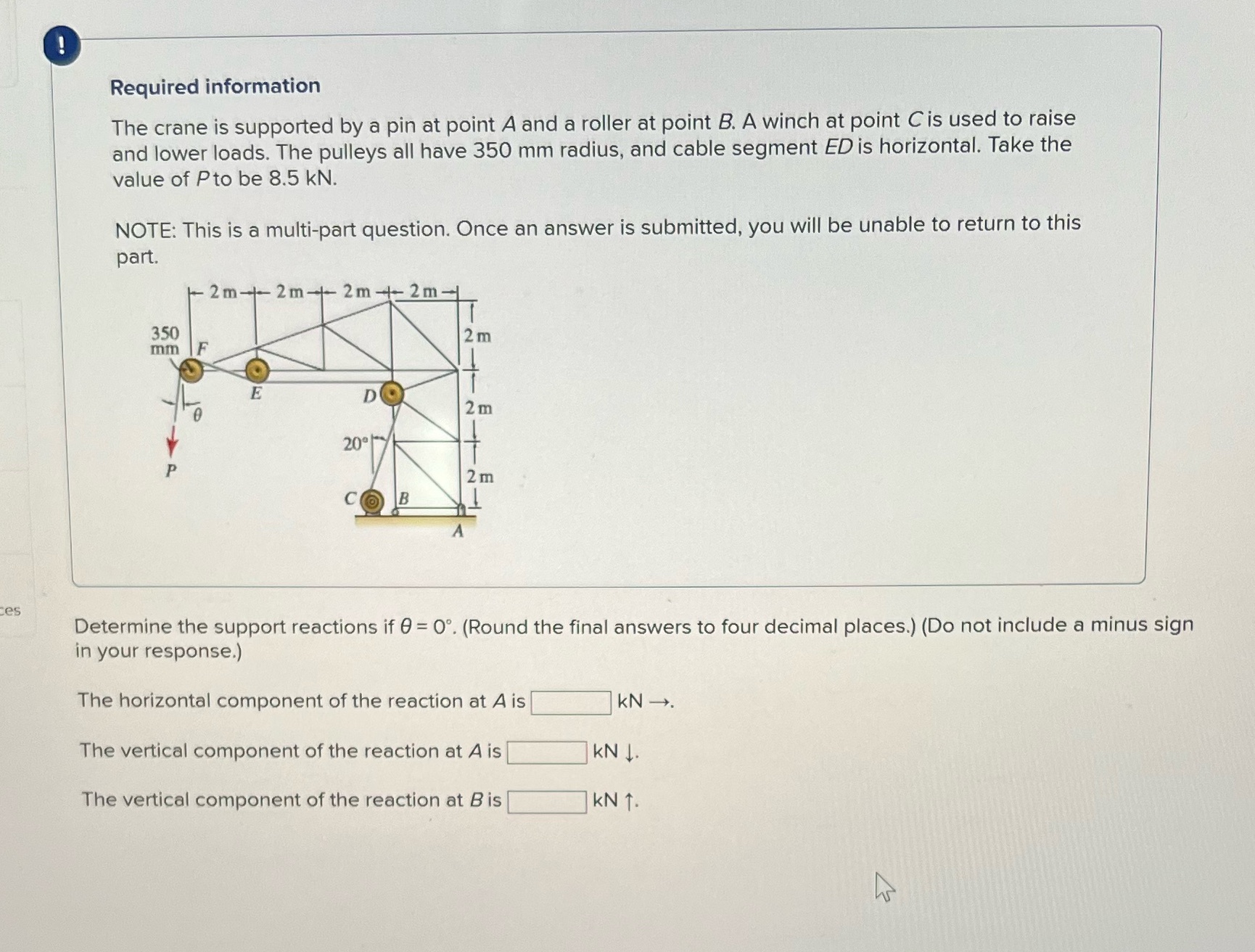

Required information The crane is supported by a pin at point A and a roller at point B. A winch at point C is used to raise and lower loads. The pulleys all have 350 mm radius, and cable segment ED is horizontal. Take the value of Pto be 8.5 kN. NOTE: This is a multi-part question. Once an answer is submitted, you will be unable to return to this part. - 2m--2m- 2m -- 2m- 350 2 m mm IF E DO 2 m 20 2 m B tes Determine the support reactions if 0 = 0'. (Round the final answers to four decimal places.) (Do not include a minus sign in your response.) The horizontal component of the reaction at A is KN - The vertical component of the reaction at A is KN J. The vertical component of the reaction at B is KN 1
