Question: help please The cable supports the loading shown in ( Figure 1 ) . Set P = 6 0 l b . Part A Determine

help please

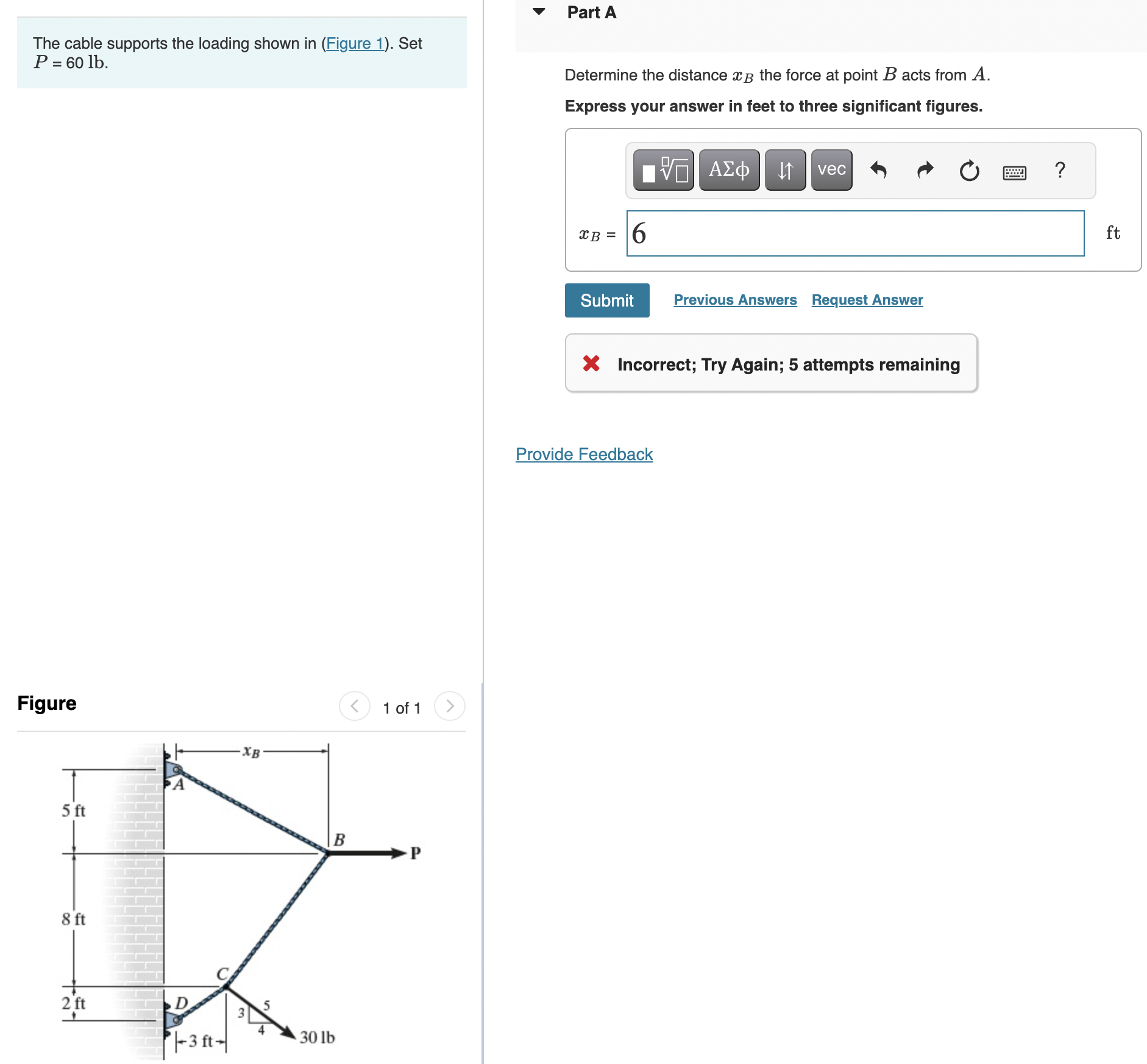

The cable supports the loading shown in (Figure 1). Set
P=60lb.
Part A
Determine the distance xB the force at point B acts from A.
Express your answer in feet to three significant figures.
xB=
ft
help please The cable supports the loading shown

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
