help set up the model

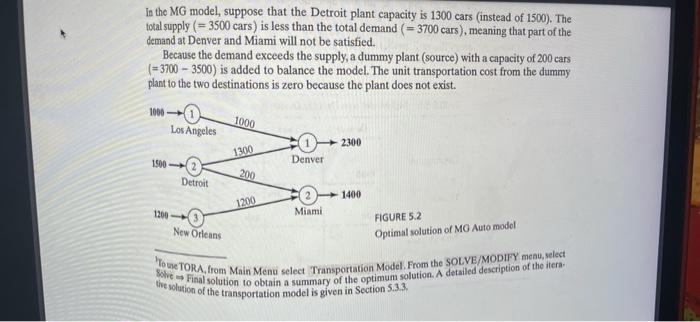

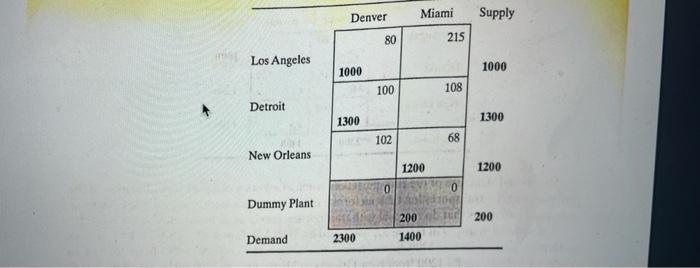

In the MG model, suppose that the Detroit plant capacity is 1300 cars (instead of 1500). The total supply (= 3500 cars) is less than the total demand (= 3700 cars), meaning that part of the demand at Denver and Miami will not be satisfied. Because the demand exceeds the supply, a dummy plant (source) with a capacity of 200 cars (= 3700 - 3500) is added to balance the model. The unit transportation cost from the dummy plant to the two destinations is zero because the plant does not exist. 1000 1000 Los Angeles 0-2300 1300 Denver 200 Detroit 1400 1200 Miami 1200- New Orleans FIGURE 5.2 Optimal solution of MG Auto model You TORA from Main Menu select Transportation Model. From the SOLVE/MODIFY menu, select the solution of the transportation model is given in Section 5.3.3. Solve Final solution to obtain a summary of the optimum solution. A detailed description of the itera. Denver Miami Supply 80 215 Los Angeles 1000 1000 100 108 Detroit 1300 1300 102 68 New Orleans 1200 1200 0 0 Dummy Plant 200 200 1400 Demand 2300 In Example 5.1-2, suppose that for the case where the demand exceeds the supply (Table 5.4), a penalty is levied at the rate of $200 and $300 for each undelivered car at Denver and Miami, respectively. Additionally, no deliveries are made from the Los Angeles plant to the Miami distribution center. Set up the model, and determine the optimal shipping scheule for the
