Question: Help solve step by step A rectangular beam of width b = 1 5 in . , effective depth d = 2 1 . 5

Help solve step by step
A rectangular beam of width b=15 in., effective depth d=21.5 in., and total depth h=24 in. spans 18.5ft between simple supports. Reinforcement consists of two No.9 Grade 80 bars with No 4 stirrups (web reinforcement for shear capacity). Determine if the beam is satisfactory with respect to cracking according to the ACI Code (check if the spacing between bars comply with the requirements of Table 24.3.2 of ACI 318-19). The clear cover on the sides is 2 inches each side.
Given:
b:=15in
d:=21.5in
h:=24im
fc':=4000 psi
Say fs=23Fy
Cc=2 inches

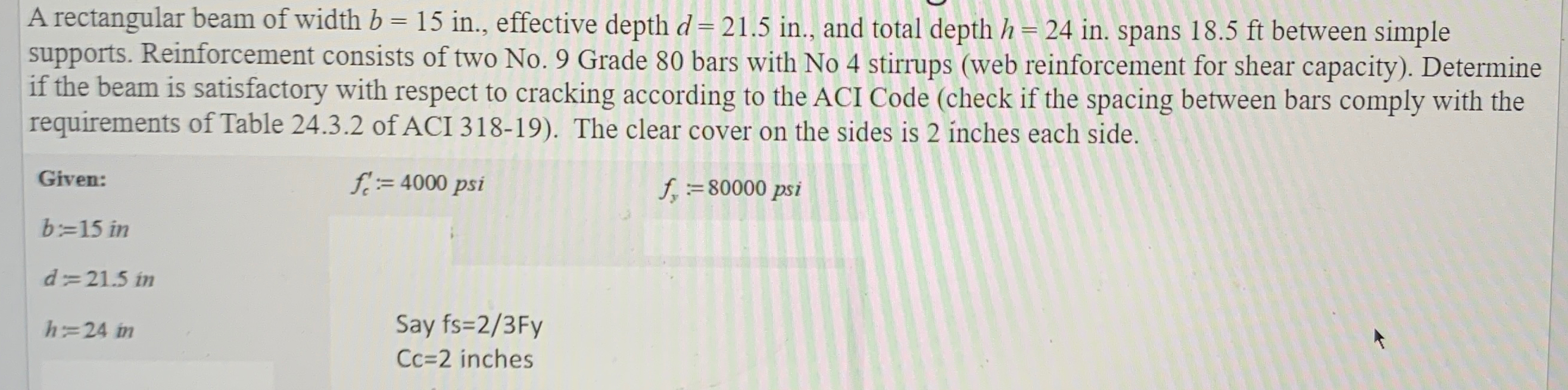

Help solve step by step A rectangular beam of

Step by Step Solution

There are 3 Steps involved in it
