Question: Help with DFD diagram 1. The Level 1DFD below is an explosion of process 1 in the level 0 DFD from problem 1, and has

Help with DFD diagram

Help with DFD diagram 1. The Level 1DFD below is

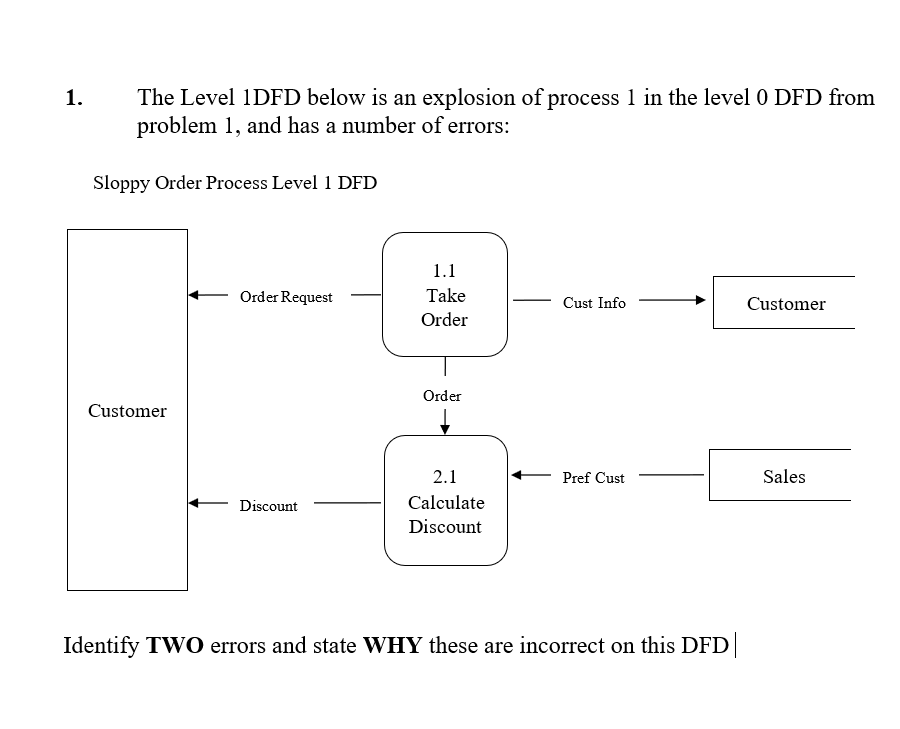

1. The Level 1DFD below is an explosion of process 1 in the level 0 DFD from problem 1, and has a number of errors: Sloppy Order Process Level 1 DFD Order Request 1.1 Take Order Cust Info Customer Order Customer Pref Cust Sales Discount 2.1 Calculate Discount Identify TWO errors and state WHY these are incorrect on this DFD|

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image
