Question: help with this question 3- (50 points) Write the truth table for the following circuits: Xo Xo ). XNOR10 ANDS NOTADO X1 X1 NANDI -

help with this question 3- (50 points) Write the truth table

help with this question

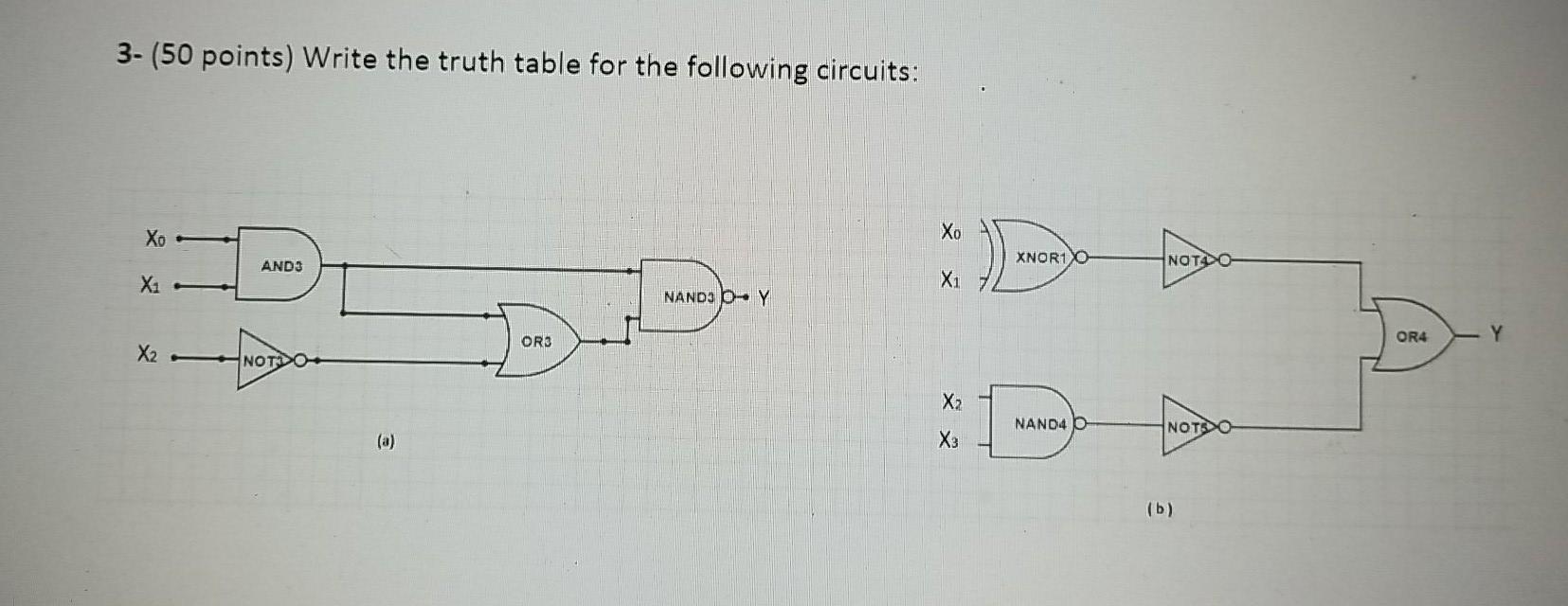

3- (50 points) Write the truth table for the following circuits: Xo Xo ). XNOR10 ANDS NOTADO X1 X1 NANDI - Y OR3 OR4 Y X2 NOTO. X2 NAND4 b NOTO X3 (b)

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related Databases Questions!

help this question. it's a digital logic 3- (50 points) Write the truth table for the following circuits: Xo Xo XNORIO AND X1 X NAND3 by OR4 OR3 X2 NO X2 NAND4 NOT X3

help with this question in digital logic 3- (50 points) Write the truth table for the following circuits: Xo 3) XNOR1YO ANDS X1 X NAND b.Y OR4 OR3 X2 NAND4 10) (b)
