Help Would Mean A Lot! In Python Please: I have a section titled *COMPLETE THE CODE/QUESTION*

TRANSCRIBED TEXT:

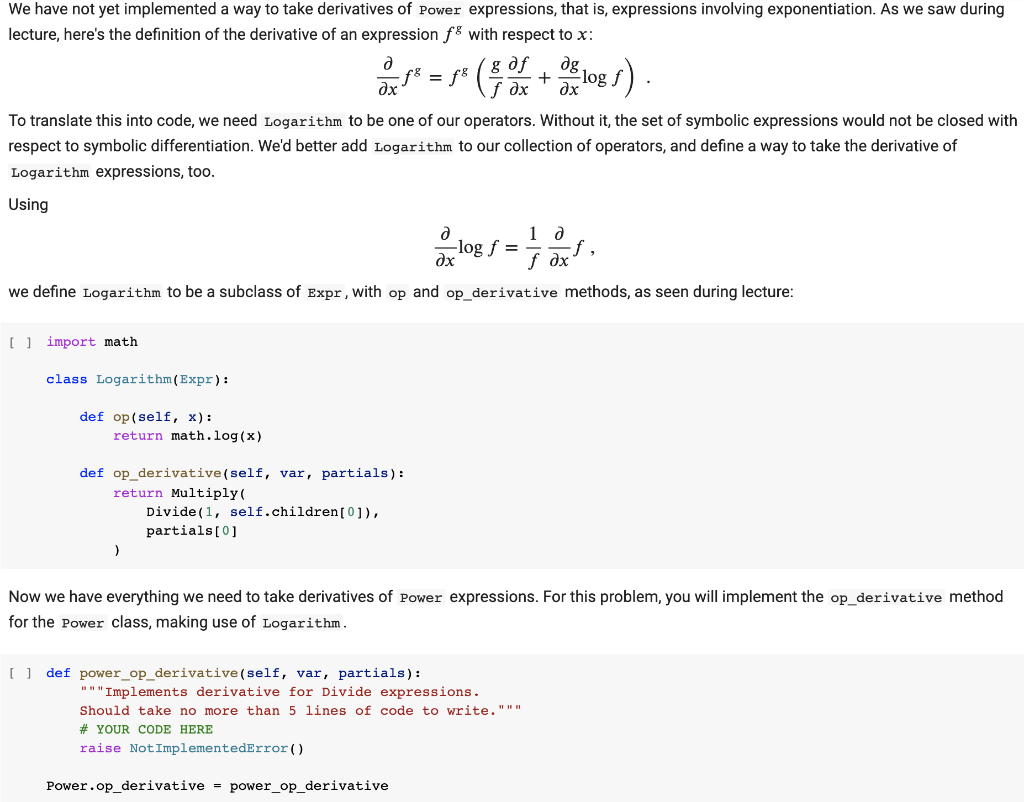

We have not yet implemented a way to take derivatives of Power expressions, that is, expressions involving exponentiation. As we saw during lecture, here's the definition of the derivative of an expression with respect to :

*EQUATION IS SHOWN IN PICURE ABOVE*

To translate this into code, we need Logarithm to be one of our operators. Without it, the set of symbolic expressions would not be closed with respect to symbolic differentiation. We'd better add Logarithm to our collection of operators, and define a way to take the derivative of Logarithm expressions, too.

Using

*EQUATION IS SHOWN IN PICURE ABOVE*

we define Logarithm to be a subclass of Expr, with op and op_derivative methods:

import math

class Logarithm(Expr):

def op(self, x):

return math.log(x)

def op_derivative(self, var, partials):

return Multiply(

Divide(1, self.children[0]),

partials[0]

)

Now we have everything we need to take derivatives of Power expressions. For this problem, you will implement the op_derivative method for the Power class, making use of Logarithm.

*COMPLETE THE CODE/QUESTION*

def power_op_derivative(self, var, partials):

"""Implements derivative for Divide expressions.

Should take no more than 5 lines of code to write."""

# YOUR CODE HERE

raise NotImplementedError()

Power.op_derivative = power_op_derivative

*CODE PROVIDED FOR CONTEXT*

class Expr:

"""Abstract class representing expressions"""

def __init__(self, *args):

self.children = list(args)

self.child_values = None

def eval(self, env=None):

"""Evaluates the value of the expression with respect to a given

environment."""

# First, we evaluate the children.

# This is done here using a list comprehension,

# but we also could have written a for loop.

child_values = [c.eval(env=env) if isinstance(c, Expr) else c

for c in self.children]

# Then, we evaluate the expression itself.

if any([isinstance(v, Expr) for v in child_values]):

# Symbolic result.

return self.__class__(*child_values)

else:

# Concrete result.

return self.op(*child_values)

def op(self, *args):

"""The op method computes the value of the expression, given the

numerical value of its subexpressions. It is not implemented in

Expr, but rather, each subclass of Expr should provide its

implementation."""

raise NotImplementedError()

def __repr__(self):

"""Represents the expression as the name of the class,

followed by all the children in parentheses."""

return "%s(%s)" % (self.__class__.__name__,

', '.join(repr(c) for c in self.children))

# Expression constructors

def __add__(self, other):

return Plus(self, other)

def __radd__(self, other):

return Plus(self, other)

def __sub__(self, other):

return Minus(self, other)

def __rsub__(self, other):

return Minus(other, self)

def __mul__(self, other):

return Multiply(self, other)

def __rmul__(self, other):

return Multiply(other, self)

def __truediv__(self, other):

return Divide(self, other)

def __rtruediv__(self, other):

return Divide(other, self)

def __pow__(self, other):

return Power(self, other)

def __rpow__(self, other):

return Power(other, self)

def __neg__(self):

return Negative(self)

class V(Expr):

"""Variable."""

def __init__(self, *args):

"""Variables must be of type string."""

assert len(args) == 1

assert isinstance(args[0], str)

super().__init__(*args)

def eval(self, env=None):

"""If the variable is in the environment, returns the

value of the variable; otherwise, returns the expression."""

if env is not None and self.children[0] in env:

return env[self.children[0]]

else:

return self

class Plus(Expr):

def op(self, x, y):

return x + y

class Minus(Expr):

def op(self, x, y):

return x - y

class Multiply(Expr):

def op(self, x, y):

return x * y

class Divide(Expr):

def op(self, x, y):

return x / y

class Power(Expr):

def op(self, x, y):

return x ** y

class Negative(Expr):

def op(self, x):

return -x

*MORE CONTEXT CODE*

def expr_derivative(self, var):

"""Computes the derivative of the expression with respect to var."""

partials = [(c.derivative(var) if isinstance(c, Expr) else 0)

for c in self.children]

return self.op_derivative(var, partials).eval()

def expr_op_derivative(self, var, partials):

raise NotImplementedError()

# Extends the existing Expr class with the newly defined methods.

Expr.derivative = expr_derivative

Expr.op_derivative = expr_op_derivative

def variable_derivative(self, var):

return 1 if self.children[0] == var else 0

# Extends the existing V class with the newly defined method.

V.derivative = variable_derivative

def plus_op_derivative(self, var, partials):

return Plus(partials[0], partials[1])

# Extends the existing Plus class...you get the idea.

Plus.op_derivative = plus_op_derivative

def negative_op_derivative(self, var, partials):

return Negative(partials[0])

We have not yet implemented a way to take derivatives of Power expressions, that is, expressions involving exponentiation. As we saw during lecture, here's the definition of the derivative of an expression f' with respect to x: og af = f&g of + fdxdx To translate this into code, we need Logarithm to be one of our operators. Without it, the set of symbolic expressions would not be closed with respect to symbolic differentiation. We'd better add Logarithm to our collection of operators, and define a way to take the derivative of Logarithm expressions, too. Using des logs = we define Logarithm to be a subclass of Expr, with op and op derivative methods, as seen during lecture: [] import math class Logarithm (Expr): def op(self, x): return math.log(x) def op derivative (self, var, partials): return Multiply Divide(1, self.children[0]), partials[0] Now we have everything we need to take derivatives of Power expressions. For this problem, you will implement the op_derivative method for the Power class, making use of Logarithm. U def power_op_derivative (self, var, partials): "" "Implements derivative for Divide expressions. Should take no more than 5 lines of code to write." # YOUR CODE HERE raise Not ImplementedError() Power.op_derivative = power_op_derivative ### Feel free to use this cell to write your own tests. ### You will not be graded on what you write here. ### Tests for Power.op_derivative ## We test your code by taking the derivative of expressions involving exponentiation, ## then evaluating the resulting expression for particular values of the variables # The derivative of x**2 with respect to x is 2x, which is equal to 6 when x = 3 e = v('x') ** 2 assert_almost_equal(e.derivative('x').eval(dict(x=3)), 6) # The derivative of x**2 with respect to y is o e = V('x') ** 2 assert_almost_equal(e.derivative('y').eval(dict(x=3)), 0) ### More tests for Power.op_derivative e = 3 ** V('x'). assert_almost_equal(e. derivative('x').eval(dict(x=4)), math.log(3) * (3 ** 4), places=2) e = V('x') ** 2.8 assert_almost_equal(e.derivative('x').eval(dict(x=3)), 2.8 * 3 ** 1.8, places=2) We have not yet implemented a way to take derivatives of Power expressions, that is, expressions involving exponentiation. As we saw during lecture, here's the definition of the derivative of an expression f' with respect to x: og af = f&g of + fdxdx To translate this into code, we need Logarithm to be one of our operators. Without it, the set of symbolic expressions would not be closed with respect to symbolic differentiation. We'd better add Logarithm to our collection of operators, and define a way to take the derivative of Logarithm expressions, too. Using des logs = we define Logarithm to be a subclass of Expr, with op and op derivative methods, as seen during lecture: [] import math class Logarithm (Expr): def op(self, x): return math.log(x) def op derivative (self, var, partials): return Multiply Divide(1, self.children[0]), partials[0] Now we have everything we need to take derivatives of Power expressions. For this problem, you will implement the op_derivative method for the Power class, making use of Logarithm. U def power_op_derivative (self, var, partials): "" "Implements derivative for Divide expressions. Should take no more than 5 lines of code to write." # YOUR CODE HERE raise Not ImplementedError() Power.op_derivative = power_op_derivative ### Feel free to use this cell to write your own tests. ### You will not be graded on what you write here. ### Tests for Power.op_derivative ## We test your code by taking the derivative of expressions involving exponentiation, ## then evaluating the resulting expression for particular values of the variables # The derivative of x**2 with respect to x is 2x, which is equal to 6 when x = 3 e = v('x') ** 2 assert_almost_equal(e.derivative('x').eval(dict(x=3)), 6) # The derivative of x**2 with respect to y is o e = V('x') ** 2 assert_almost_equal(e.derivative('y').eval(dict(x=3)), 0) ### More tests for Power.op_derivative e = 3 ** V('x'). assert_almost_equal(e. derivative('x').eval(dict(x=4)), math.log(3) * (3 ** 4), places=2) e = V('x') ** 2.8 assert_almost_equal(e.derivative('x').eval(dict(x=3)), 2.8 * 3 ** 1.8, places=2)
