Question: helpQUESTION 2 Replace the loading on the frame by a single resultant force. Specify where its line of action intersects a horizontal line along member

helpQUESTION 2

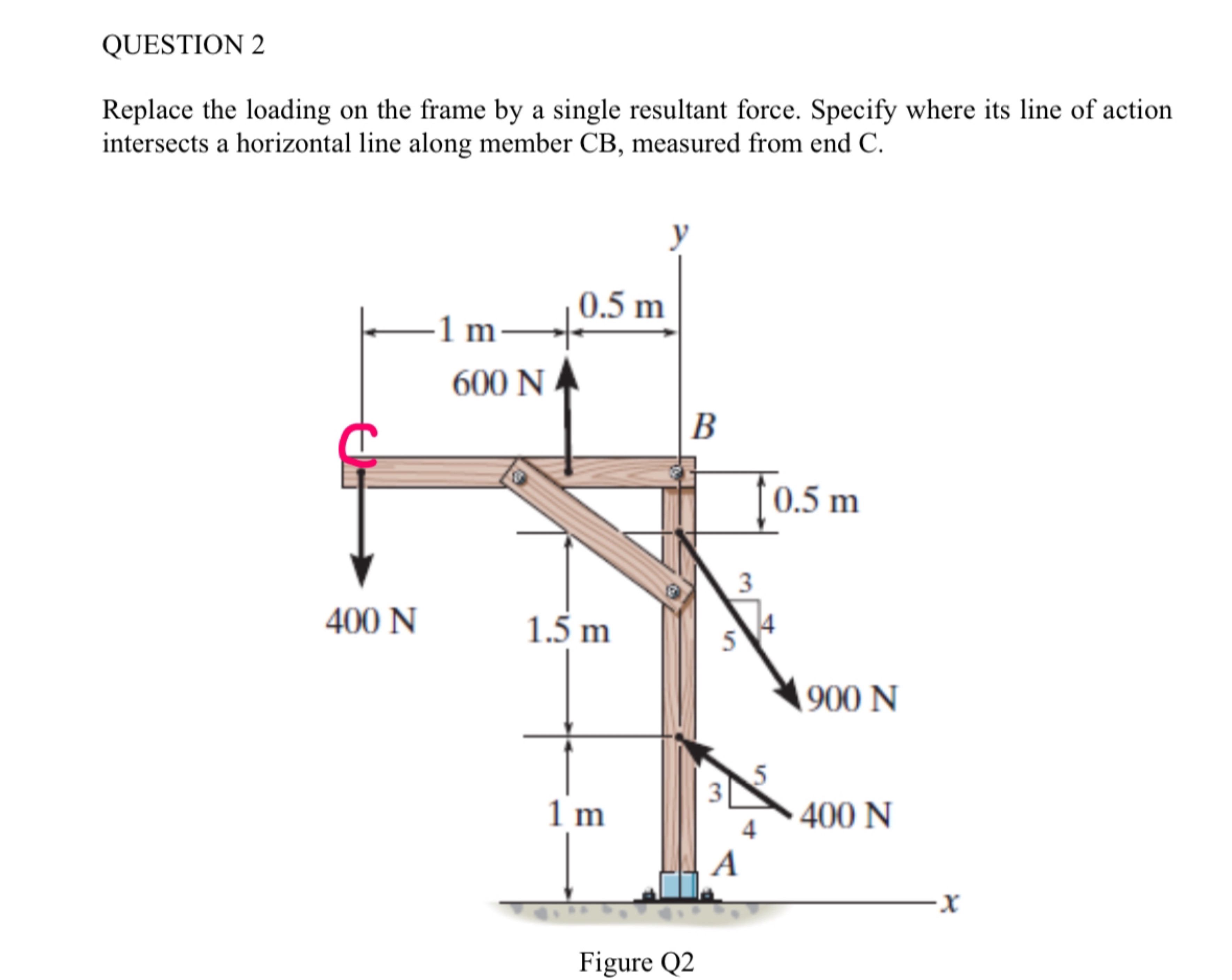

Replace the loading on the frame by a single resultant force. Specify where its line of action
intersects a horizontal line along member CB, measured from end C.
Figure Q2
helpQUESTION 2 Replace the loading on the frame

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Civil Engineering Questions!

Q:

Replace the loading on the frame by a single resultant force. Specify where its line of action intersects member CD, measured from end C. Given: F1 = 500 N a = 3 m F2 = 300 N b = 2 m c = 1 m F3 = 250...

Q:

Replace the loading on the frame by a single resultant force. Specify where its line of action intersects member AB, measured from A. Given: F1 = 500 N a = 3 m F2 = 300 N b = 2 m c = 1 m F3 = 250 N d...

Q:

Replace the loading on the frame by a single resultant force. Specify where its line of action intersects member AB, measured from A. Given: F1 = 300 lb M = 600 lbâ‹… ft F2 = 200 lb a = 3 ft b = 4...

Q:

Problem 3 Replace the loading on the frame by a single resultant force. Specify where its line of action intersects member AB, measured from A. F. = 350 N, F, = 500 N, F) = 600 N, M = 150 Nm, 0 = 60...

Q:

Replace the loading by an equivalent resultant force and specify where the resultant's line of action intersects the member AB measured from A. 0.5 m 0.5 m 8 kN 3 m B y 0.5 m A -1.5 m- 6 kN X 5 kN

Q:

Replace the force system acting on the frame by an equivalent resultant force, and specify where the resultant's line of action intersects member AB(Figure 1). Suppose that F1 = 30 lb, F2 = 50 lb,...

Q:

Replace the loading by an equivalent resultant force and specify where the resultant's line of action intersects the horizontal segment of the member measured from A. 20 kN -2m- -2 m- B -2 m- 3 2m 15...

Q:

Replace the force system acting on the frame by an equivalent resultant force and specify where the resultant's line of action intersects member AB, measured from point A. Given: F1 = 35 lb a = 2 ft...

Q:

Replace the force system acting on the frame by an equivalent resultant force, and specify where the resultants line of action intersects member BC, measured from point B. 40 lb B 2 ft 20 lb 5 ft A 5...

Q:

Replace the force system acting on the frame by an equivalent resultant force and specify where the resultant's line of action intersects member BC, measured from point B. Given: F1 = 35 lb F2 = 20...
