Question: Higure 2 : Uircult for froblem 2 . Problem 2 : Application - 2 0 % Consider the circuit shown in Figure 2 where v

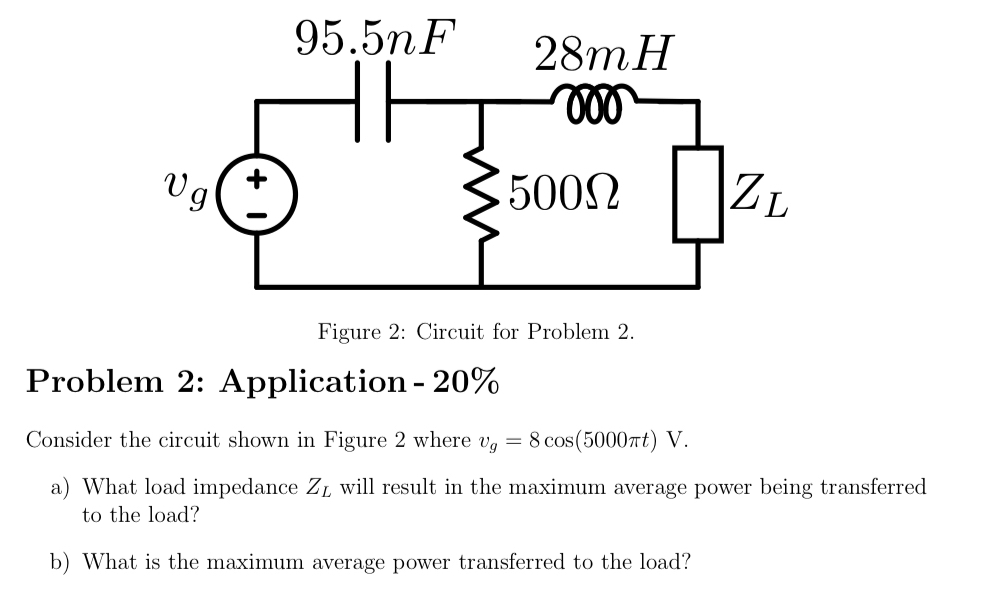

Higure 2: Uircult for froblem 2.
Problem 2: Application-20%
Consider the circuit shown in Figure 2 where vg=8cos(5000t)V.
a) What load impedance ZL will result in the maximum average power being transferred to the load?
b) What is the maximum average power transferred to the load?
Higure 2 : Uircult for froblem 2 . Problem 2 :

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
