$($a$)$ Check the stability $($overturning$,$ sliding, bearing capacity$)$ of the cantilever wall$-$backfill system snown in Figure $1,$ with the data given in Table $1,$ and state if the selected dimensions are safe or not $($Use Rankine's theory of earth pressures$).$

$($b$)$ Solve the same problem using Geo$5$ software.

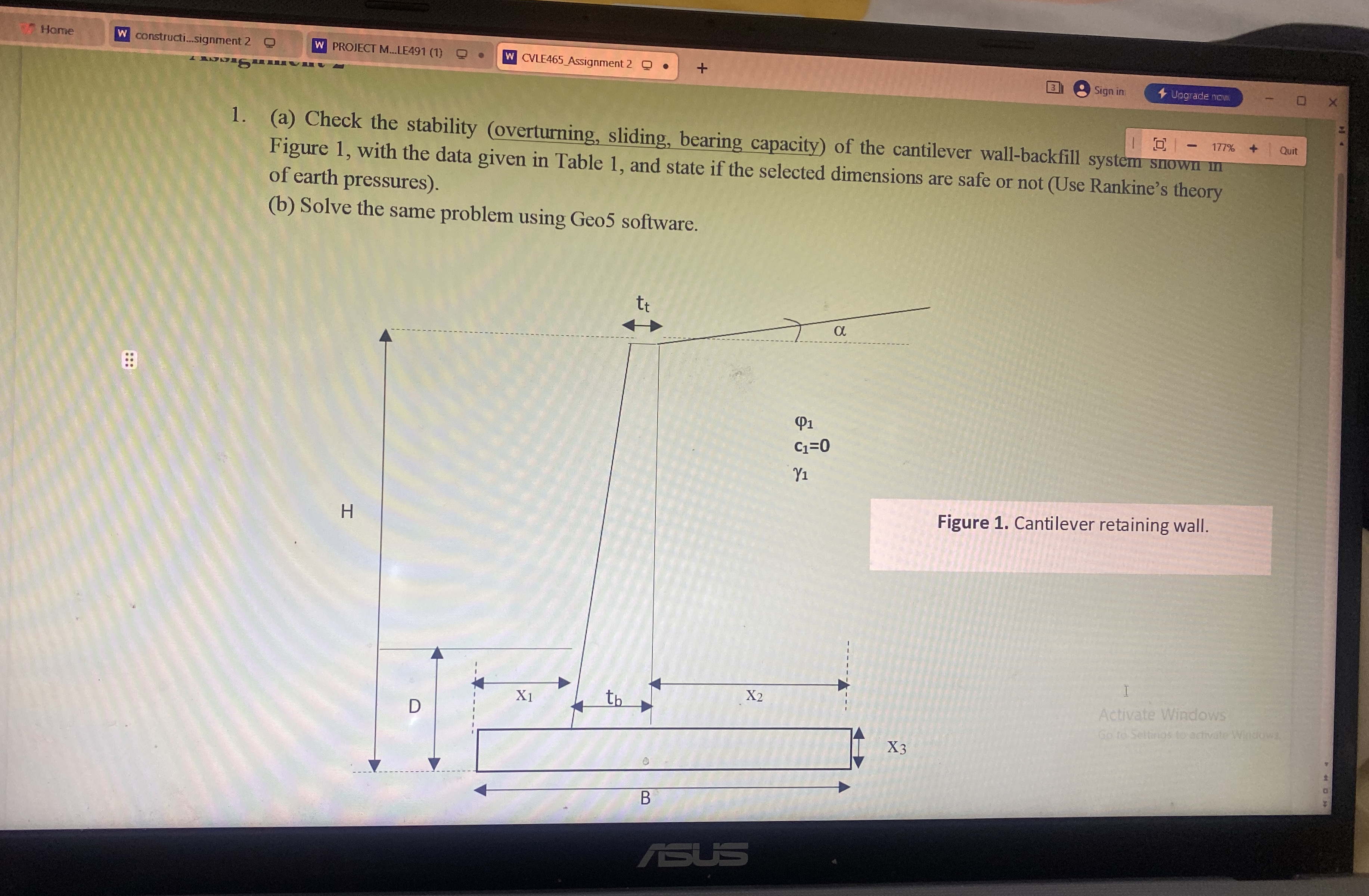

Figure $1.$ Cantilever retaining wall.

Assume any value for the variables
