Homework $06$

Problem $1$

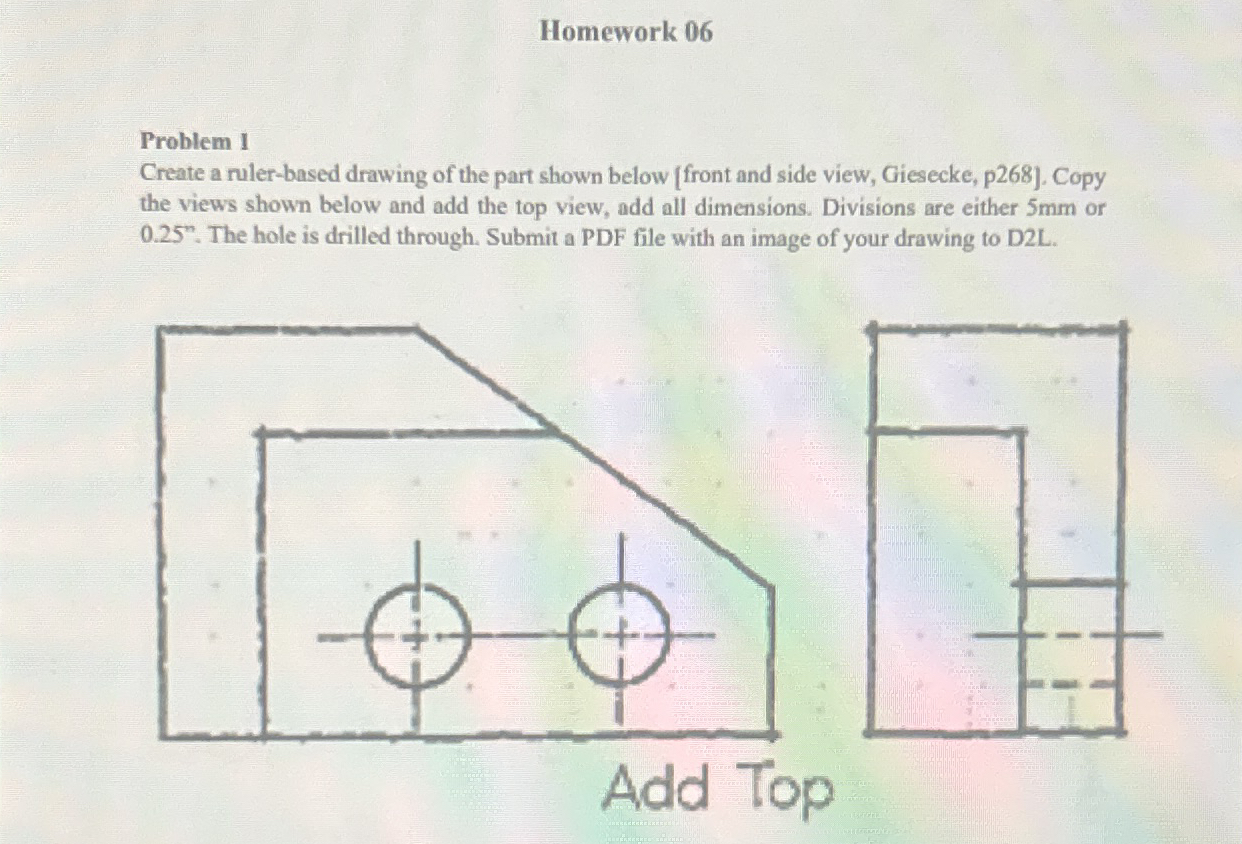

Create a ruler$-$based drawing of the part shown below $[$front and side view, Giesecke, p$268].$ Copy the views shown below and add the top view, add all dimensions. Divisions are either $5$ mm or ${0\mathrm{.}25}^{\text{'}\text{'}}.$ The hole is drilled through. Submit a PDF file with an image of your drawing to D$2$L$.$

Add Top
