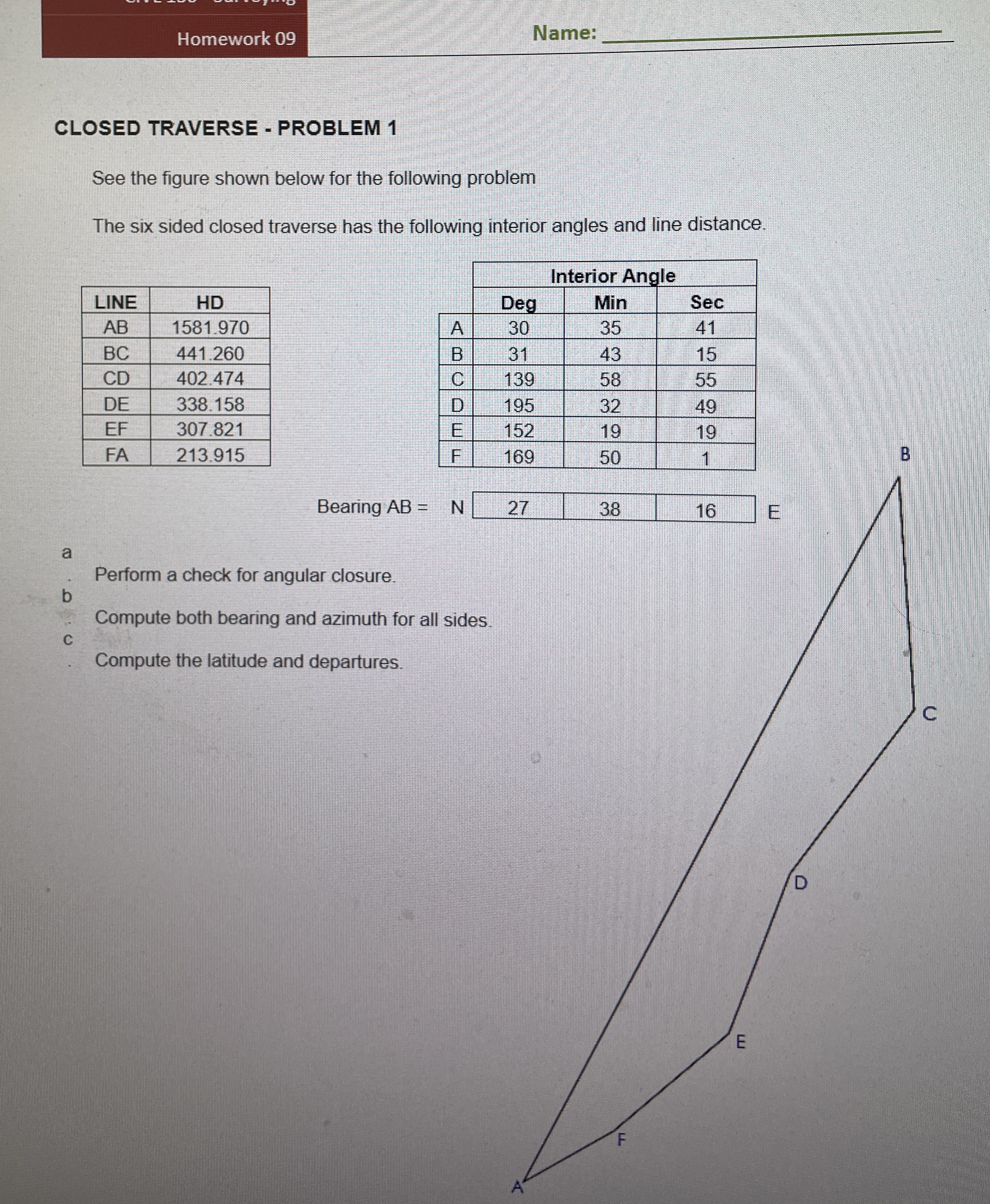

Homework $09$

Name:

CLOSED TRAVERSE $-$ PROBLEM $1$

See the figure shown below for the following problem

The six sided closed traverse has the following interior angles and line distance.

$\backslash$table$[[$LINE$,$HD$],[AB,1581\mathrm{.}970],[BC,441\mathrm{.}260],[CD,402\mathrm{.}474],[DE,338\mathrm{.}158],[EF,307\mathrm{.}821],[FA,213\mathrm{.}915]]$

$\backslash$table$[[,$Interior Angle$],[,$Deg,Min,Sec$],[$A$,30,35,41],[$B$,31,43,15],[$C$,139,58,55],[$D$,195,32,49],[$E$,152,19,19],[$F$,169,50,1]]$

Bearing $AB=$

N

$\backslash$table$[[27,38,16]]$

E

a

b

Perform a check for angular closure.

Compute both bearing and azimuth for all sides.

c

Compute the latitude and departures.
