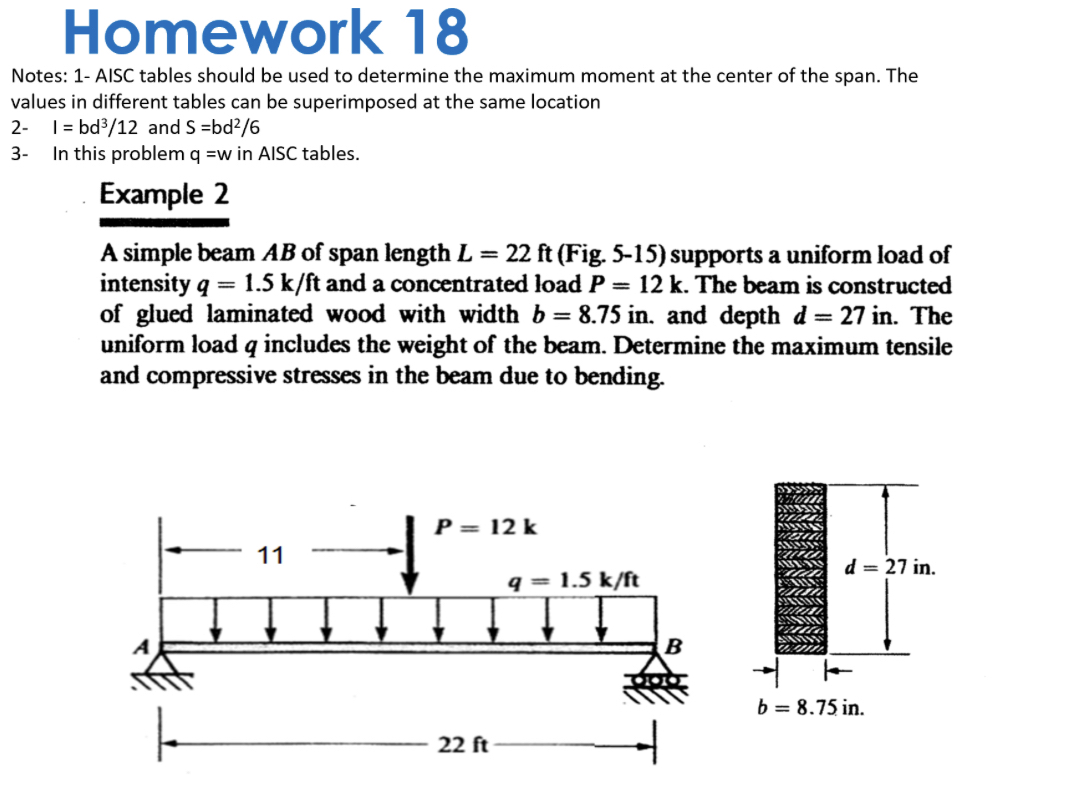

Homework $18$

Notes: $1-$ AISC tables should be used to determine the maximum moment at the center of the span. The values in different tables can be superimposed at the same location

$2-I=b\frac{d^3}{12}$ and $S=b\frac{d^2}{6}$

$3-$ In this problem $q=w$ in AISC tables.

Example $2$

A simple beam $AB$ of span length $L=22ft($Fig$.5-15)$ supports a uniform load of intensity $q=1\mathrm{.}5\frac{k}{f}t$ and a concentrated load $P=12k.$ The beam is constructed of glued laminated wood with width $b=8\mathrm{.}75$ in$.$ and depth $d=27$ in$.$ The uniform load $q$ includes the weight of the beam. Determine the maximum tensile and compressive stresses in the beam due to bending.
