Homework 10 1 Saved Help Save & Exit Submit 00 Knowing that the tension in wire...
Fantastic news! We've Found the answer you've been seeking!
Question:
Transcribed Image Text:

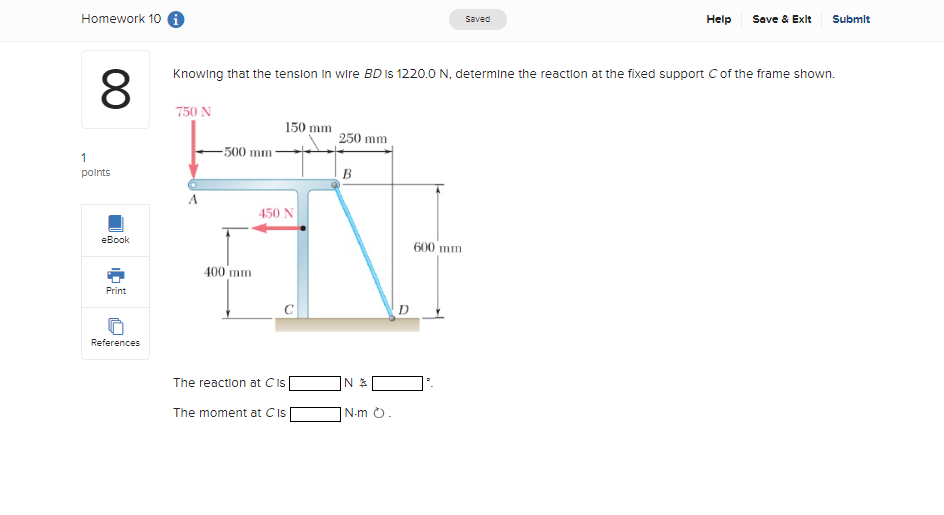

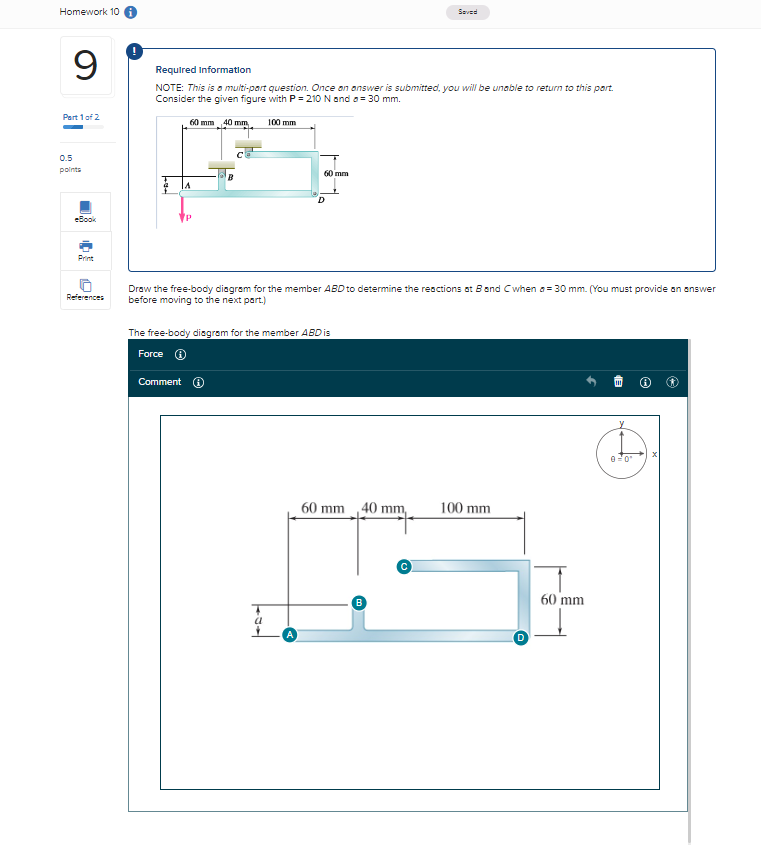

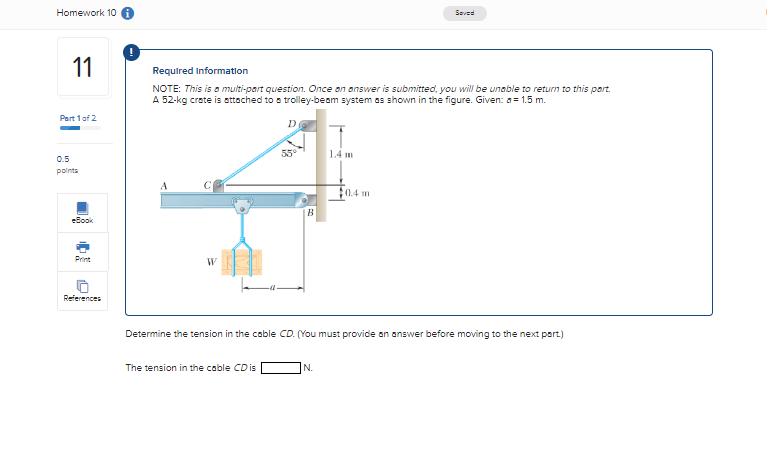

Homework 10 1 Saved Help Save & Exit Submit 00 Knowing that the tension in wire BD is 1220.0 N, determine the reaction at the fixed support C of the frame shown. 8 750 N 150 mm 250 mm -500 mm B points A 450 N eBook 400 mm Print References The reaction at C is N The moment at Cis N.m O. D 600 mm Homework 10 9 Part 1 of 2 0.5 points eBook Required Information Seved NOTE: This is a multi-part question. Once an answer is submitted, you will be unable to return to this part. Consider the given figure with P = 210 N and a = 30 mm. 60 mm 40 mm, 100 mm A 60 mm Print References Draw the free-body diagram for the member ABD to determine the reactions at B and C when a = 30 mm. (You must provide an answer before moving to the next part.) The free-body diagram for the member ABD is Force Comment A 60 mm 401 100 mm B 60 mm 0=0" x Homework 10 11 Part 1 of 2 0.5 points eBook Required Information Seved NOTE: This is a multi-part question. Once an answer is submitted, you will be unable to return to this port. A 52-kg crate is attached to a trolley-beam system as shown in the figure. Given: a=1.5 m. Print W References Da 55 1.4 m 0.4 m B Determine the tension in the cable CD. (You must provide an answer before moving to the next part) The tension in the cable CD is N. Homework 10 1 Saved Help Save & Exit Submit 00 Knowing that the tension in wire BD is 1220.0 N, determine the reaction at the fixed support C of the frame shown. 8 750 N 150 mm 250 mm -500 mm B points A 450 N eBook 400 mm Print References The reaction at C is N The moment at Cis N.m O. D 600 mm Homework 10 9 Part 1 of 2 0.5 points eBook Required Information Seved NOTE: This is a multi-part question. Once an answer is submitted, you will be unable to return to this part. Consider the given figure with P = 210 N and a = 30 mm. 60 mm 40 mm, 100 mm A 60 mm Print References Draw the free-body diagram for the member ABD to determine the reactions at B and C when a = 30 mm. (You must provide an answer before moving to the next part.) The free-body diagram for the member ABD is Force Comment A 60 mm 401 100 mm B 60 mm 0=0" x Homework 10 11 Part 1 of 2 0.5 points eBook Required Information Seved NOTE: This is a multi-part question. Once an answer is submitted, you will be unable to return to this port. A 52-kg crate is attached to a trolley-beam system as shown in the figure. Given: a=1.5 m. Print W References Da 55 1.4 m 0.4 m B Determine the tension in the cable CD. (You must provide an answer before moving to the next part) The tension in the cable CD is N.
