Question: Homework H 1 5 . B Given: A T - shaped frame is held in static equilibrium by a fixed support at A . The

Homework H15.B

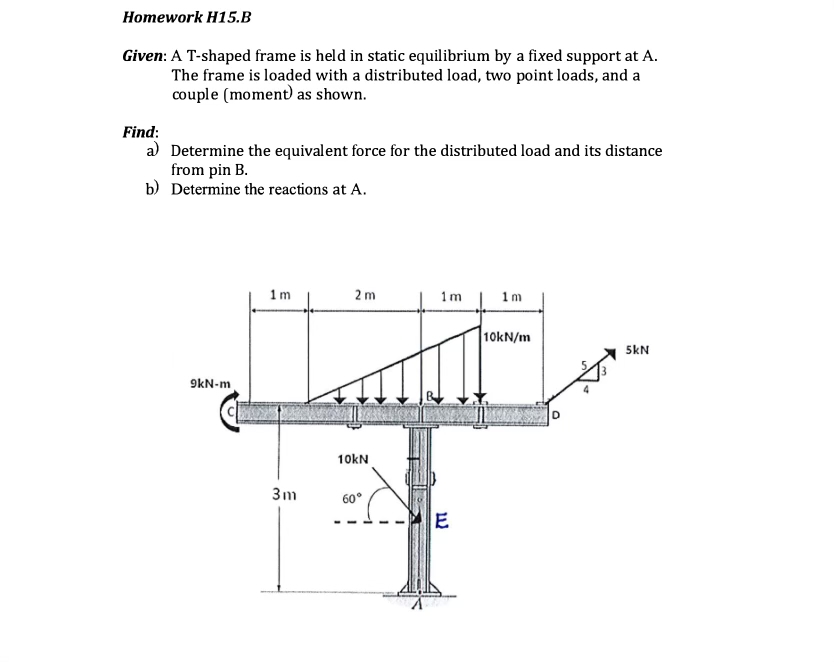

Given: A T-shaped frame is held in static equilibrium by a fixed support at A. The frame is loaded with a distributed load, two point loads, and a couple (moment) as shown.
Find:
a) Determine the equivalent force for the distributed load and its distance from pin B.
b) Determine the reactions at A .
Homework H 1 5 . B Given: A T - shaped frame is

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
