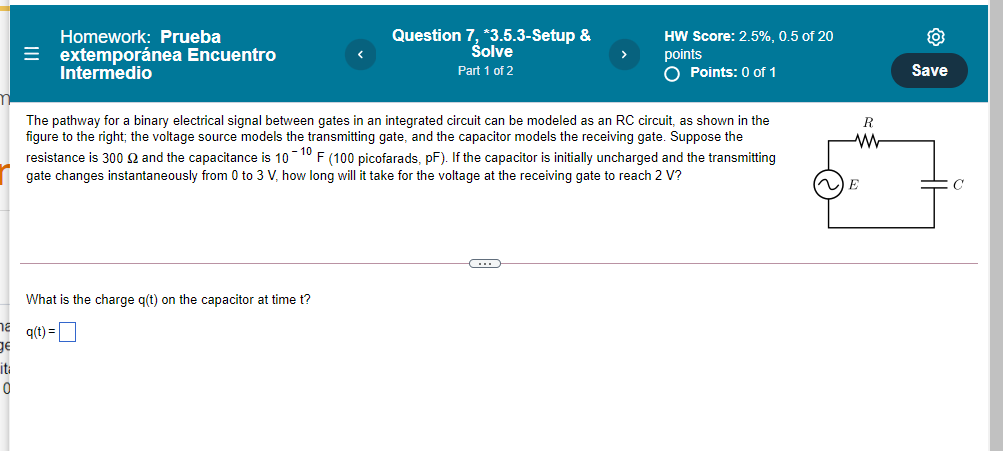

Homework: Prueba Question 7, *3.5.3-Setup & HW Score: 2.5%, 0.5 of 20 E extemporaneousntro Solve points Intermedio Part 1 of 2 O Points: 0 of 1 Save The pathway for a binary electrical signal between gates in an integrated circuit can be modeled as an RC circuit, as shown in the R figure to the right; the voltage source models the transmitting gate, and the capacitor models the receiving gate. Suppose the resistance is 300 Q and the capacitance is 10 F (100 picofarads, pF). If the capacitor is initially uncharged and the transmitting gate changes instantaneously from 0 to 3 V, how long will it take for the voltage at the receiving gate to reach 2 V? E C What is the charge q(t) on the capacitor at time t? q(t) =
