Question: How to solve Part B Determine the internal shear force at point D . Express your answer to three significant figures and include the appropriate

How to solve
Part B

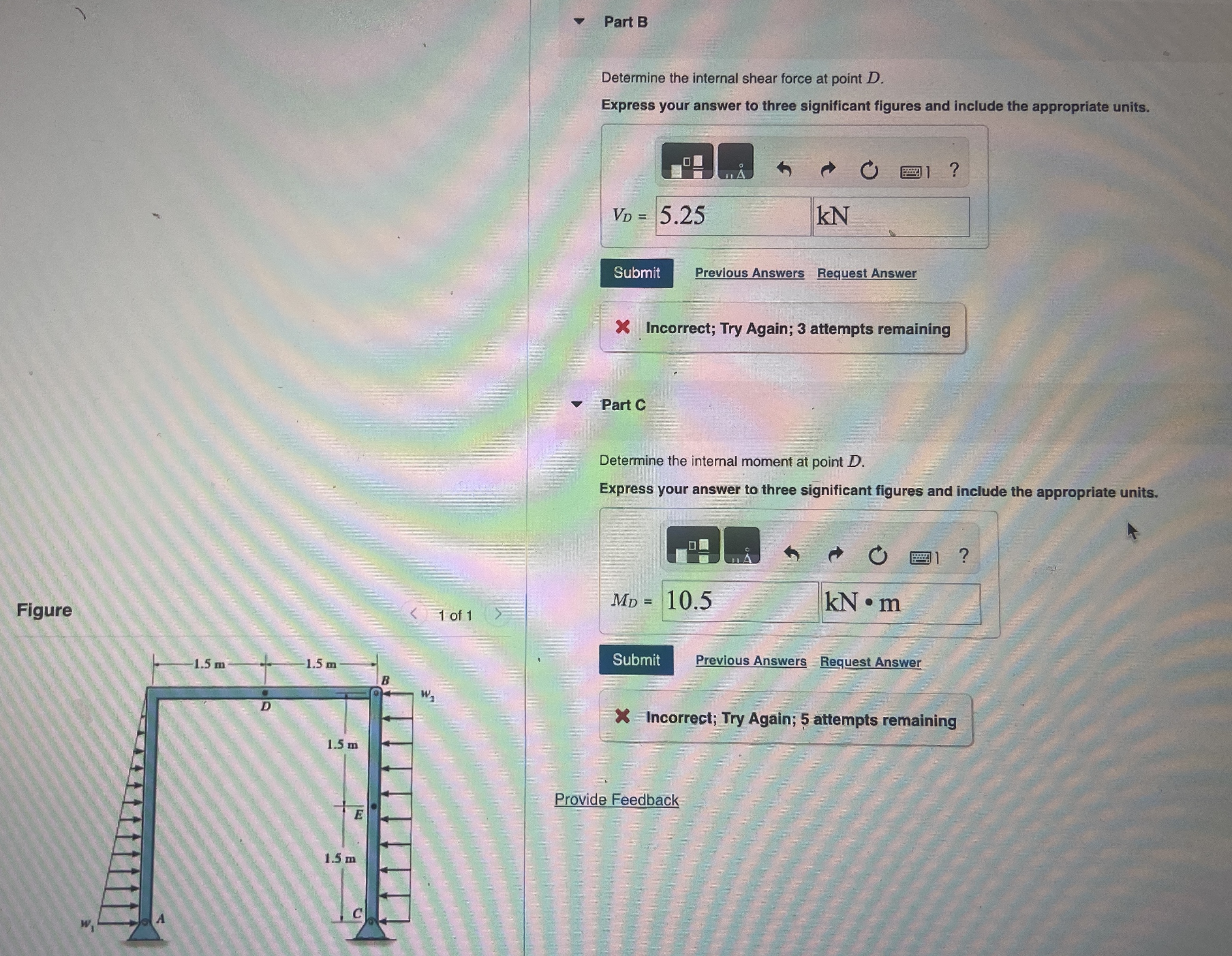

Determine the internal shear force at point D.
Express your answer to three significant figures and include the appropriate units.
Previous Answers
Request Answer
Incorrect; Try Again; 3 attempts remaining
Part C
Determine the internal moment at point D.
Express your answer to three significant figures and include the appropriate units.
Figure
1 of 1
How to solve Part B Determine the internal shear

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
