Question: 22 pts For the standard TTL gate shown, VBE(cut-in) = 0.6V VBE(on) = VD(on) = 0.7V, VBE(sat) = 0.8V, CE(sat) = 0.1V, BF =

22 pts For the standard TTL gate shown, VBE(cut-in) = 0.6V VBE(on)

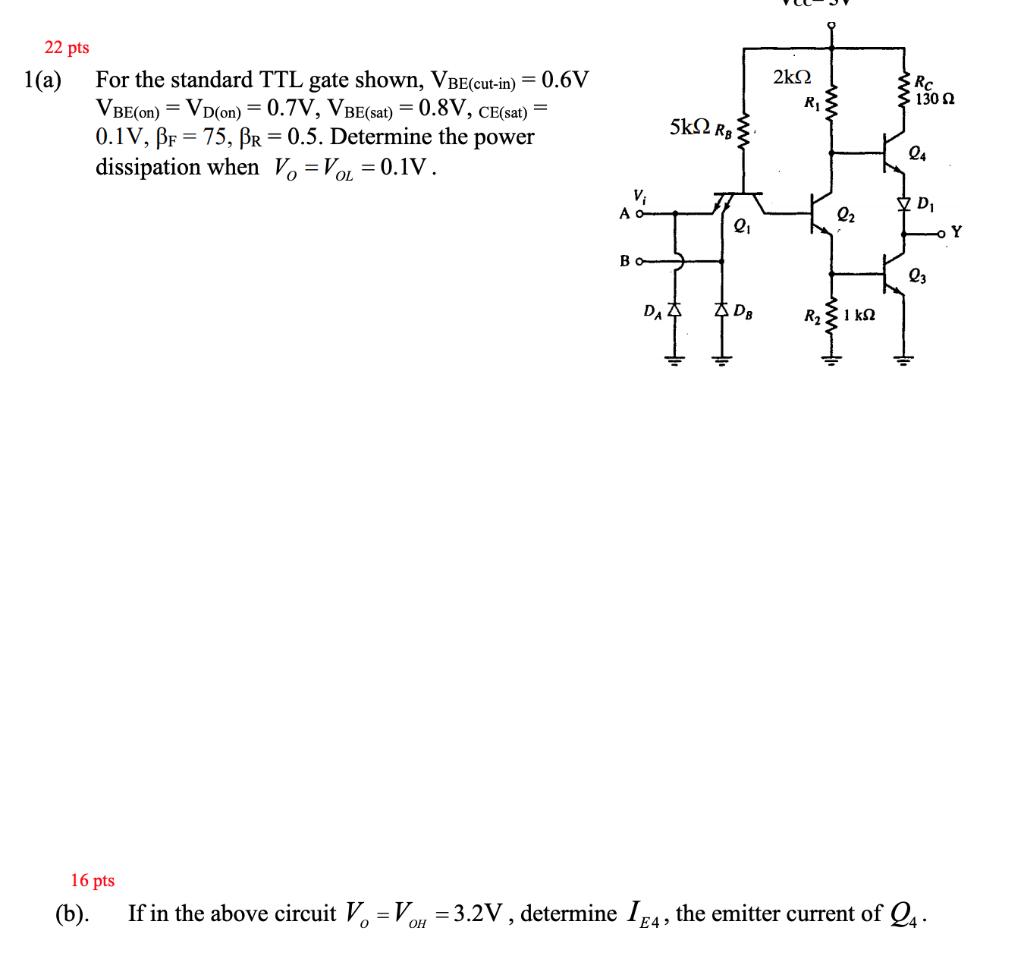

22 pts For the standard TTL gate shown, VBE(cut-in) = 0.6V VBE(on) = VD(on) = 0.7V, VBE(sat) = 0.8V, CE(sat) = 0.1V, BF = 75, BR = 0.5. Determine the power dissipation when Vo =VoL = 0.1V. 1(a) 2k Rc 130 2 %3D %3D 5k Rg V; Bo DA A A Da R21 kn 16 pts (b). If in the above circuit V, =Vou = 3.2V , determine IF4, the emitter current of Q.. OH ww-

Step by Step Solution

★★★★★

3.49 Rating (156 Votes )

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
