Question: HW 0 5 - 5 ( P 5 - 3 3 ) : The jib crane is supported by a pin at C and rod

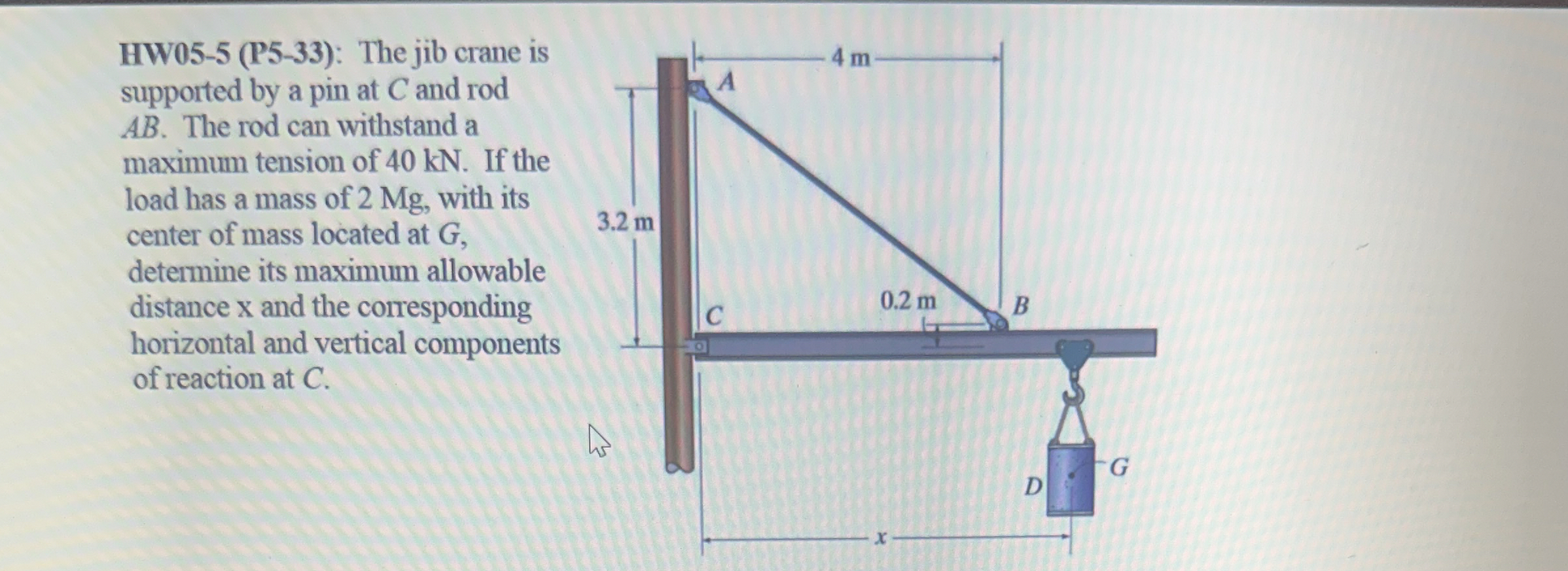

HW05-5(P5-33): The jib crane is supported by a pin at C and rod AB. The rod can withstand a maximum tension of 40 kN . If the load has a mass of 2 Mg , with its center of mass located at G, determine its maximum allowable distance x and the corresponding horizontal and vertical components of reaction at C.
HW 0 5 - 5 ( P 5 - 3 3 ) : The jib crane is

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
