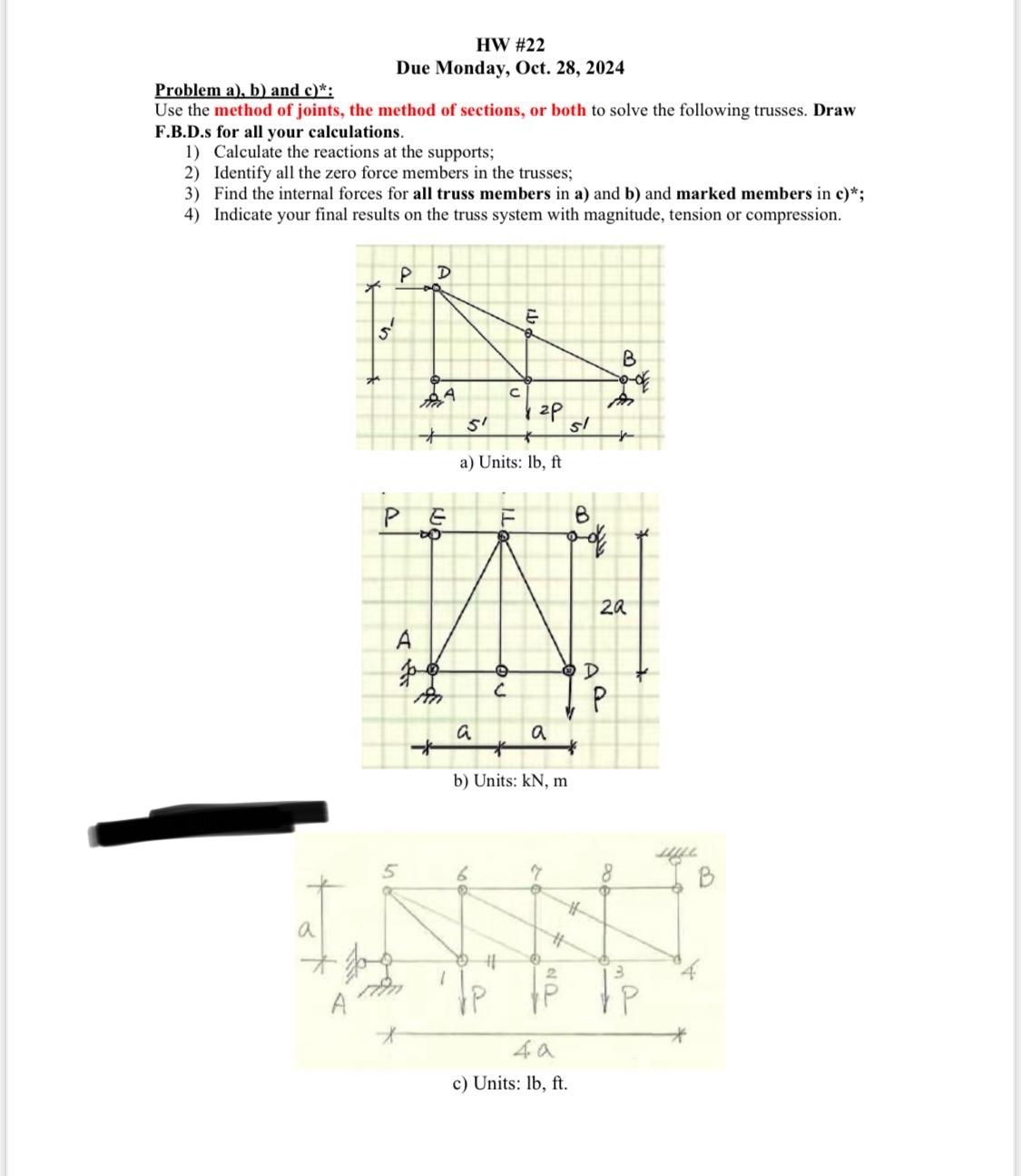

HW #$22$

Due Monday, Oct. $28,2024$

Problem a$),$ b$)$ and c$)*$:

Use the method of joints, the method of sections, or both to solve the following trusses. Draw F$.$B$.$D$.$s for all your calculations.

Calculate the reactions at the supports;

Identify all the zero force members in the trusses;

Find the internal forces for all truss members in a$)$ and b$)$ and marked members in c$)*$;

Indicate your final results on the truss system with magnitude, tension or compression.

b$)$ Units: $kN,m$
