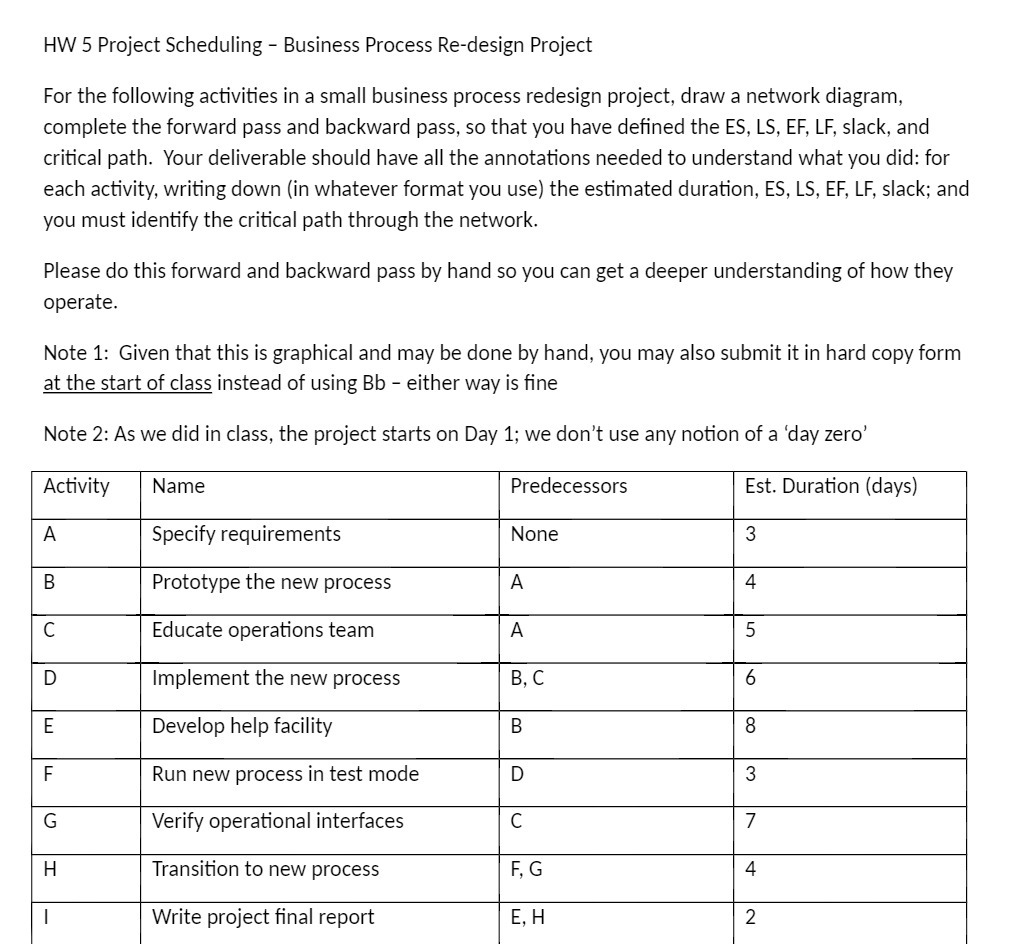

HW 5 Project Scheduling Business Process Re-design Project For the following activities in a small business process redesign project, draw a network diagram, complete the forward pass and backward pass, so that you have dened the ES, LS, EF, LF, slack, and critical path. Your deliverable should have all the annotations needed to understand what you did: for each activity, writing down (in whatever format you use) the estimated duration, ES, LS, EF, LF, slack; and you must identify the critical path through the network. Please do this forward and backward pass by hand so you can get a deeper understanding of how they operate. Note 1: Given that this is graphical and may be done by hand, you may also submit it in hard copy form at the start of class instead of using Bb either way is fine Note 2: As we did in class, the project starts on Day 1; we don't use any notion of a 'day zero\" Activity Name Predecessors Est. Duration (days) A Specify requirements B Prototype the new process C Educate operations team D Implement the new process E Develop help facility F Run new process in test mode G Verify operational interfaces H Transition to new process Write project nal report
