Question: HW 6 Flexibility Method for Beams and Frames Use the Flexibility Method to determine the reaction at B for the statically indeterminate beams and frame

HW 6 Flexibility Method for Beams and Frames

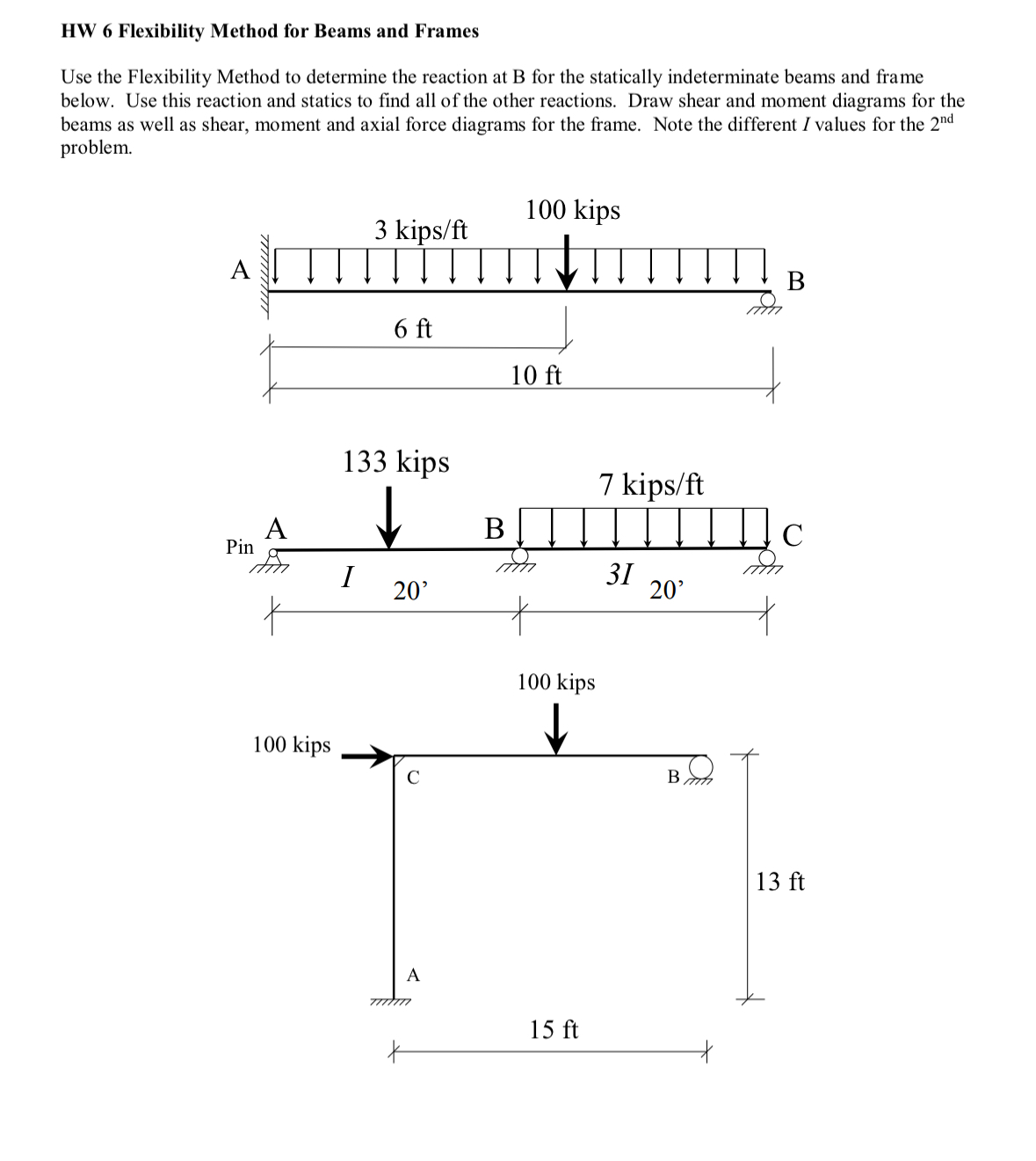

Use the Flexibility Method to determine the reaction at B for the statically indeterminate beams and frame
below. Use this reaction and statics to find all of the other reactions. Draw shear and moment diagrams for the
beams as well as shear, moment and axial force diagrams for the frame. Note the different I values for the 2nd
problem.
HW 6 Flexibility Method for Beams and Frames Use

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
