Question: HYDRAULICS. The plane surface A B is rectangular in shape, 1 . 8 meters wide and 3 meters long into the screen. With oil of

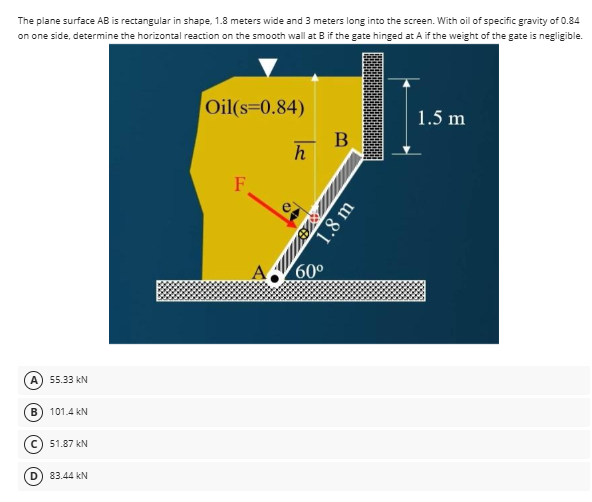

HYDRAULICS. The plane surface AB is rectangular in shape, 1.8 meters wide and 3 meters long into the screen. With oil of specific gravity of 0.84 on one side, determine the horizontal reaction on the smooth wall at B if the gate hinged at A if the weight of the gate is negligible.
55.33 kN
101.4 kN
51.87 kN
83.44 kN
