Question: I Analyze the frame in the given figure using moment distribution method. El is constant, ( mathrm { X } = 5 0

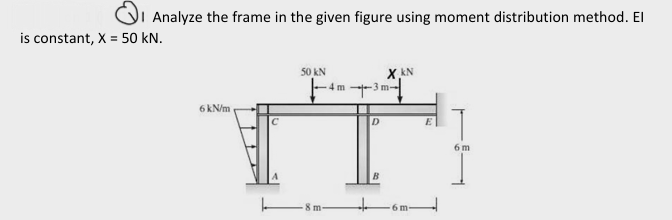

I Analyze the frame in the given figure using moment distribution method. El is constant, \(\mathrm{X}=50\mathrm{kN}\).
I Analyze the frame in the given figure using

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
