I cannot get this C++ program to run. need some help please

---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

// main.cpp

//

// promary driver of the GPS-Satellite system

#include

#include "GPS.h"

#include "Satellite.h"

int main()

{

GPS gps("raw_gps.dat",

"noise_gps.dat",

0.0,

0.0,

5.0,

10.0,

20.0);

Satellite satellite("filtered_gps.dat");

satellite.registerGPS(&gps);

double time = 0.0;

while (time

{

satellite.updateSystem(2.0);

time += 2.0;

}

}

---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

// AlphaBetaFilter.cpp

//

// Contains the implementation for a 2D alpha beta filter

//

#include "AlphaBetaFilter.h"

// TODO: Implement the class here!

class AlphaBetaFilter { public: void setAlphaBeta(double a, double b); private: double a; double b; };

---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

// AlphaBetaFilter.h

//

// Contains the class definition for a 2D alpha beta filter

//

#pragma once

#include

class AlphaBetaFilter

{

// TODO: define the class!

void AlphaBetaFilter::setAlphaBeta(double a, double b) { this -> a = a; this -> b = b; }

};

---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

GPS.cpp

//

//

#include

#include

#include "GPS.h"

static const double PI = 4.0 * std::atan(1.0);

GPS::GPS(const std::string &rawLogFileName,

const std::string &noiseLogFileName,

double x,

double y,

double vx,

double vy,

double u)

{

rawLog.open(rawLogFileName.c_str());

noiseLog.open(noiseLogFileName.c_str());

xpos = x;

ypos = y;

xvel = vx;

yvel = vy;

uncertainty = u;

rawLog

noiseLog

}

std::pair GPS::getRawPosition()

{

return {xpos, ypos};

}

std::pair GPS::getRawVelocity()

{

return {xvel, yvel};

}

std::pair GPS::update(double dt)

{

xpos += xvel * dt;

ypos += yvel * dt;

rawLog

std::mt19937 rng;

rng.seed(static_cast(xpos + ypos));

std::uniform_real_distribution dis(0.0, 1.0);

std::uniform_real_distribution thetadis(0.0, 2.0 * PI);

double theta = thetadis(rng);

double radius = std::sqrt(dis(rng)) * uncertainty;

std::pair uncertainState;

uncertainState.first = xpos + radius * std::cos(theta);

uncertainState.second = ypos + radius * std::sin(theta);

noiseLog

return uncertainState;

}

---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

// GPS.h

//

// the GPS class defined here is a simple data reporter. it maintains its own

// state information and provides it to consumers with noise layered on. the

// noise generated is just random within some uncertainty.

//

#pragma once

#include

#include

#include

class GPS

{

public:

// this constructor gives the GPS its initial state.

GPS(const std::string &rawLogFileName,

const std::string &noiseLogFileName,

double x,

double y,

double vx,

double vy,

double u);

std::pair getRawPosition();

std::pair getRawVelocity();

std::pair update(double dt);

private:

double xpos;

double ypos;

double xvel;

double yvel;

double uncertainty;

std::ofstream rawLog;

std::ofstream noiseLog;

};

---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

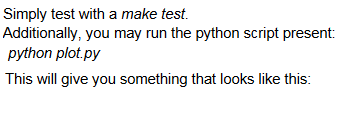

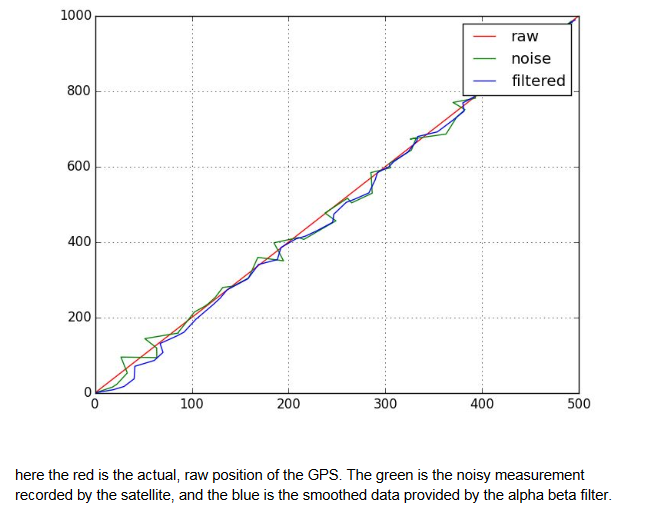

//plot.py

import matplotlib.pyplot as plt

import numpy as np

rawdata = np.genfromtxt('raw_gps.dat', unpack=True)

fildata = np.genfromtxt('filtered_gps.dat', unpack=True)

noisedata = np.genfromtxt('noise_gps.dat', unpack=True)

plt.plot(rawdata[0,:], rawdata[1,:], 'r-', label='raw')

plt.plot(noisedata[0,:], noisedata[1,:], 'g-', label='noise')

plt.plot(fildata[0,:], fildata[1,:], 'b-', label='filtered')

plt.grid()

plt.legend()

plt.show()

---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

//Satellite.cpp

//

#include "Satellite.h"

#include "GPS.h"

Satellite::Satellite(const std::string &logFileName)

{

log.open(logFileName.c_str());

filter.setAlphaBeta(0.55, 0.05);

}

void Satellite::updateSystem(double dt)

{

auto data = gps->update(dt);

filter.update(dt, data.first, data.second);

auto filtered = filter.getState();

log

}

void Satellite::registerGPS(GPS *newGPS)

{

gps = newGPS;

auto pos = gps->getRawPosition();

auto vel = gps->getRawVelocity();

log

filter.initializeState(pos.first, pos.second, vel.first, vel.second);

}

---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

// Satellite.h

//

// the Satellite class defined here is a simple representation of an observer

// entity in our system. it uses an alpha-beta filter to smooth input data from

// a connected GPS-like object.

//

#pragma once

#include

#include

#include "AlphaBetaFilter.h"

// forward declaring the GPS class

class GPS;

class Satellite

{

public:

Satellite(const std::string &logFileName);

void updateSystem(double dt);

void registerGPS(GPS *newGPS);

private:

GPS *gps;

AlphaBetaFilter filter;

std::ofstream log;

};

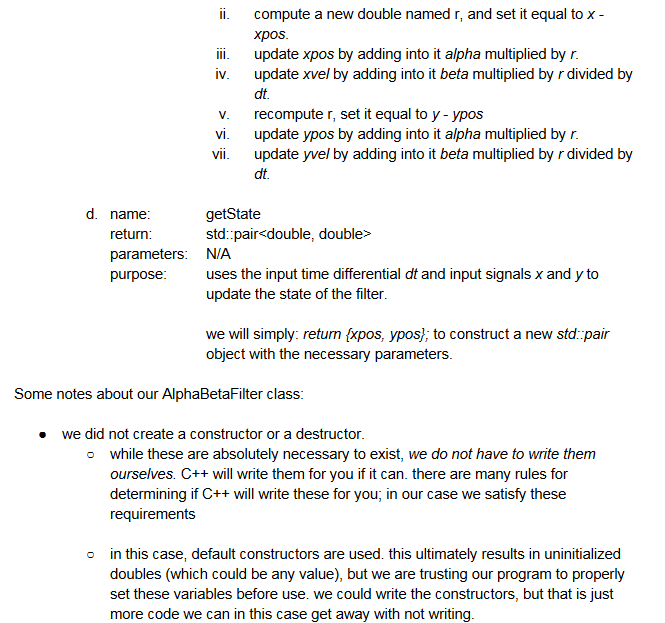

The task here is to implement the AlphaBetaFilter class 1. The alpha beta filter class needs to have the following public functions. place the class definition in a header file and the implementations in a separate source file (.cpp) setAlphaBeta void double a, double b sets the alpha and beta members of the class to a and b respectively a. name return parameters: purpose initializeState void double x, double y, double vx, double vy sets the x and and y position and velocity to the input values b. name return parameters: purpose update void double dt, double x, double y uses the input time differential dt and input signals x and y to update the state of the filter C name return parameters: purpose this is done by doing the following i. update the xpos and ypos by adding in their respective velocities multiplied by the time differential
