Question: I found the similar one but with wrong answer. Please offer help. Q . 3 ( a ) A SHORT column with a hollow -
I found the similar one but with wrong answer. Please offer help.

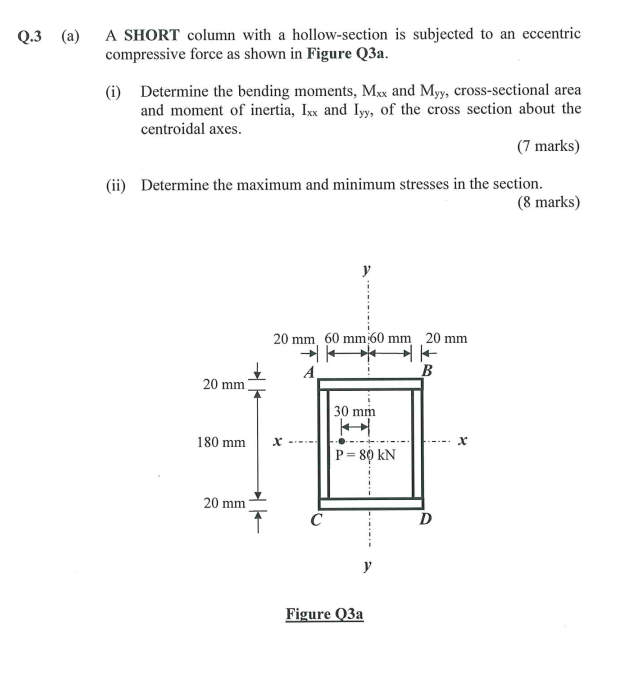

Qa A SHORT column with a hollowsection is subjected to an eccentric
compressive force as shown in Figure Qa
i Determine the bending moments, and crosssectional area
and moment of inertia, and of the cross section about the
centroidal axes.
marks
ii Determine the maximum and minimum stresses in the section.
marks
Figure Qa
