I have provided question and solution .Please solve it elaborately and explain every step

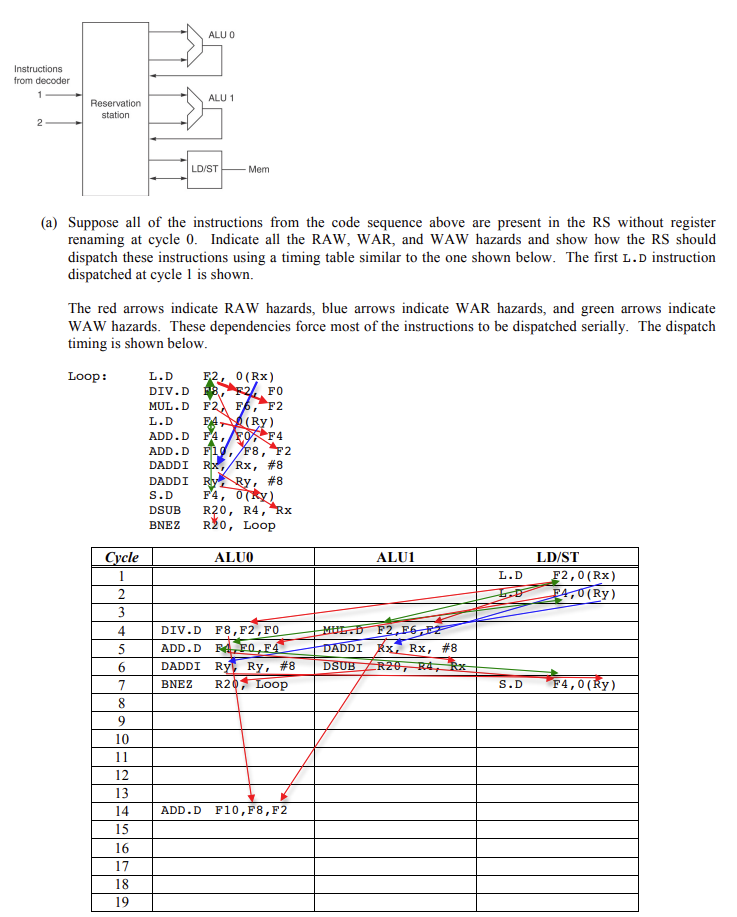

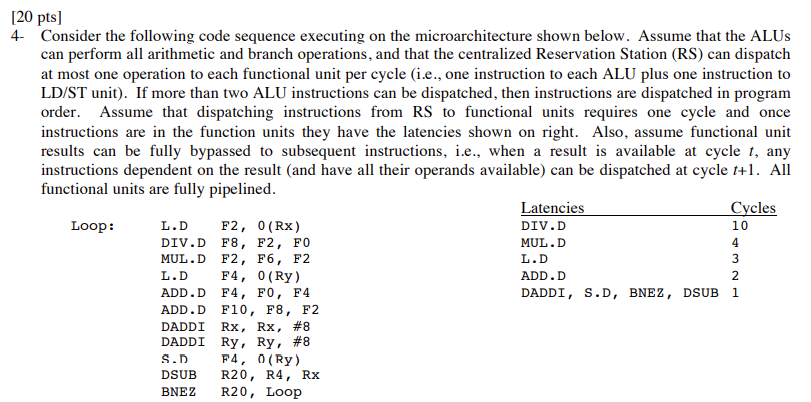

Consider the following code sequence executing on the microarchitecture shown below. Assume that the ALUs can perform all arithmetic and branch operations, and that the centralized Reservation Station (RS) can dispatch at most one operation to each functional unit per cycle (i.e., one instruction to each ALU plus one instruction to LD/ST unit). If more than two ALU instructions can be dispatched, then instructions are dispatched in program order. Assume that dispatching instructions from RS to functional units requires one cycle and once instructions are in the function units they have the latencies shown on right. Also, assume functional unit results can be fully bypassed to subsequent instructions, i.e., when a result is available at cycle t, any instructions dependent on the result (and have all their operands available) can be dispatched at cycle t+1. All functional units are fully pipelined. (a) Suppose all of the instructions from the code sequence above are present in the RS without register renaming at cycle 0 . Indicate all the RAW, WAR, and WAW hazards and show how the RS should dispatch these instructions using a timing table similar to the one shown below. The first L.D instruction dispatched at cycle 1 is shown. The red arrows indicate RAW hazards, blue arrows indicate WAR hazards, and green arrows indicate WAW hazards. These dependencies force most of the instructions to be dispatched serially. The dispatch timing is shown below
