Question: I knnow the answer for 6 is ( mathrm { C } & mathrm { D } ) and for

I knnow the answer for 6 is \(\mathrm{C}\& \mathrm{D}\) and for 7 is \(\mathrm{A}\mathrm{\& C}\) could you explain why and show working for question \(7.\mid \)

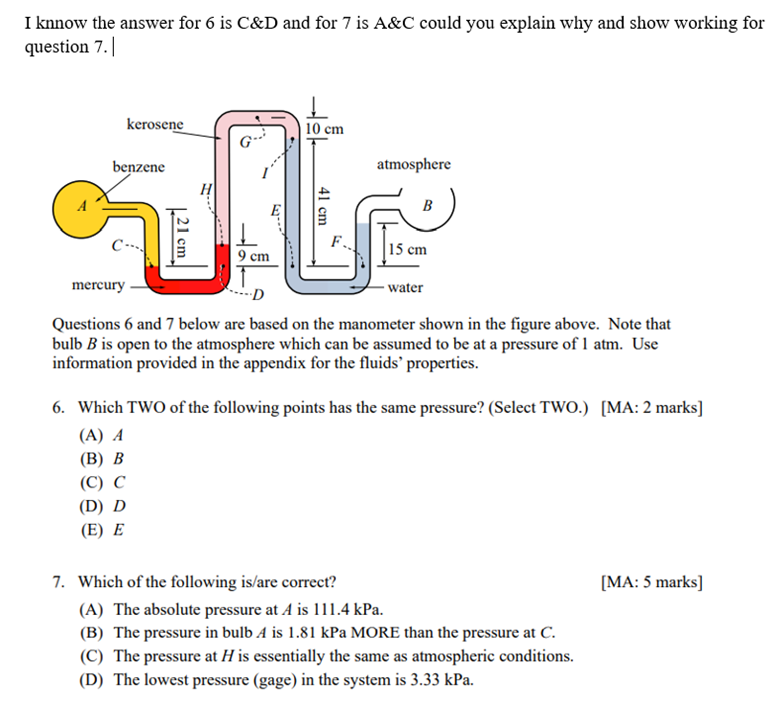

Questions 6 and 7 below are based on the manometer shown in the figure above. Note that bulb \( B \) is open to the atmosphere which can be assumed to be at a pressure of 1 atm . Use information provided in the appendix for the fluids' properties.
6. Which TWO of the following points has the same pressure? (Select TWO.)
[MA: 2 marks]
(A)\( A \)
(B)\( B \)
(C)\( C \)
(D)\( D \)
(E)\( E \)
7. Which of the following is/are correct?
[MA: 5 marks]
(A) The absolute pressure at \( A \) is 111.4 kPa .
(B) The pressure in bulb \( A \) is 1.81 kPa MORE than the pressure at \( C \).
(C) The pressure at \( H \) is essentially the same as atmospheric conditions.
(D) The lowest pressure (gage) in the system is 3.33 kPa .
