Question: I know the answer is IV but the structure i drew is the same as I. Can someone explain why IV would be the answer

I know the answer is IV but the structure i drew is the same as I. Can someone explain why IV would be the answer and not I or V? Thanks!
I know the answer is IV but the structure i drew is

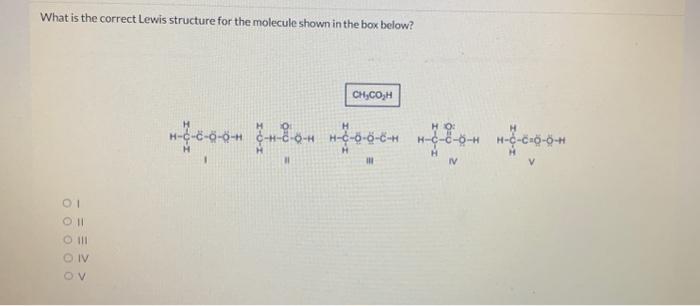

What is the correct Lewis structure for the molecule shown in the box below

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
