Question: I need help ASAP please 1 - Two solid steel shafts are fitted with flanges that are then connected by bolts as shown. The bolts

I need help ASAP please

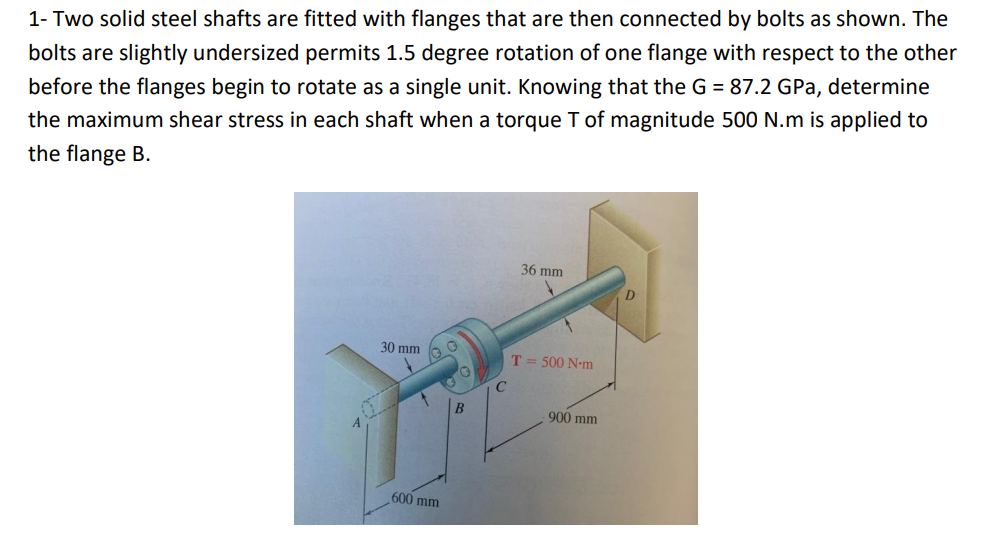

1- Two solid steel shafts are fitted with flanges that are then connected by bolts as shown. The bolts are slightly undersized permits 1.5 degree rotation of one flange with respect to the other before the flanges begin to rotate as a single unit. Knowing that the G=87.2GPa, determine the maximum shear stress in each shaft when a torque T of magnitude 500 N.m is applied to the flange B.
I need help ASAP please 1 - Two solid steel

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Civil Engineering Questions!

Q:

Two solid steel shafts are fitted with flanges that are then connected by bolts as shown. The bolts are slightly undersized and permit a 1.5? rotation of one flange with respect to the other before...
