I need help modifying my file "scanner.l" based on the instructions below. I DON't need C program.TIA

----------------------------------------

Scanner.l File ( MODIFY This):

--------------------------------------

/* Compiler Theory and Design Dr. Duane J. Jarc */

/* This file contains flex input file */

%{ #include #include

using namespace std;

#include "listing.h" #include "tokens.h"

%}

%option noyywrap

ws [ \t ]+ comment \-\-.* line [ ] id [A-Za-z][A-Za-z0-9]* digit [0-9] int {digit}+ punc [\(\),:;] %%

{ws} { ECHO; } {comment} { ECHO; nextLine();} {line} { ECHO; nextLine();} "

int main() { firstLine(); FILE *file = fopen("lexemes.txt", "wa"); int token = yylex(); while (token) { fprintf(file, "%d %s ", token, yytext); token = yylex(); } lastLine(); fclose(file); return 0; }

---------------------------------------

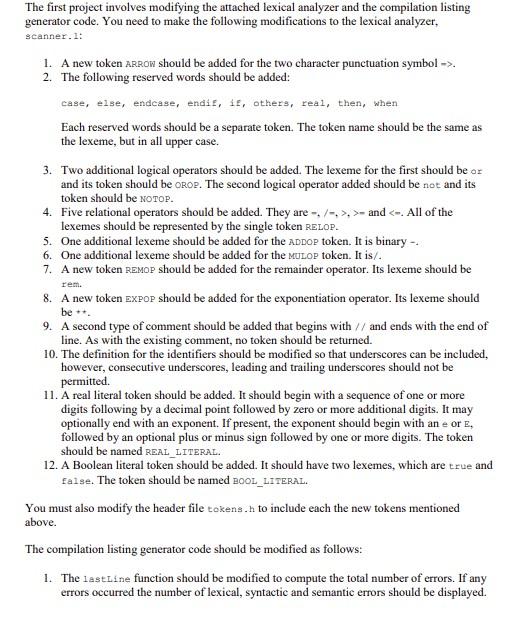

The first project involves modifying the attached lexical analyzer and the compilation listing generator code. You need to make the following modifications to the lexical analyzer, scanner.1: rem. 1. A new token ARROW should be added for the two character punctuation symbol -> 2. The following reserved words should be added: case, else, endcase, endis, is, others, real, then, when Each reserved words should be a separate token. The token name should be the same as the lexeme, but in all upper case. 3. Two additional logical operators should be added. The lexeme for the first should be or and its token should be OROP. The second logical operator added should be not and its token should be NOTOP. 4. Five relational operators should be added. They are -/-->> and
