I need help with the following:

Develop a network scheme that uses the following subnet 190.1.x.x 190.2.x.x that meets the following criteria.

1. Makes the most efficient use of the address range

2. Creates the subnets in the table below that are represented by the drawing

Subnet	Hosts	IP Address Range	Mask Bits
VPN-A	2
VPN-B	2
VPN-C	2
Ontario	200
Cheyenne	175
Melbourne-1	275
Melbourne-2	100
Atlanta	63

3. Determine the best routing protocol for this solution. Explain your reasoning.

4. Each site will support a guest wireless access point for internet access only. All internet destined traffic will traverse over the VPNs from the sites to Melbourne. The IP range for this site will be 192.168.1.0 and is common among all sites. Besides the obvious firewall, how would you recommend isolating the traffic on the wireless to not mix with internet corporate traffic?

a. How would this be implemented at the remote sites? (device type)

5. What factors in the size of the VPN tunnels must be considered in the design?

6. Where do you believe the DHCP server(s) should be placed in this diagram? Explain your reasoning.

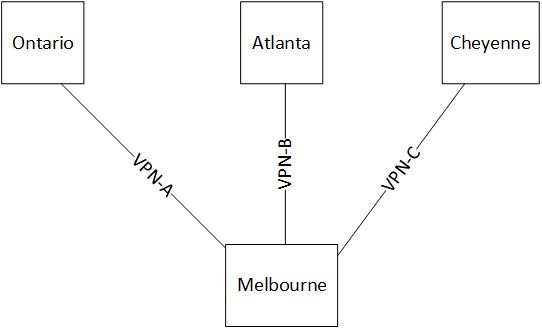

Ontario Atlanta Cheyenne Lo Melbourne
