I need help with these exercises. there is also example included, I could not seperate them. Thanks a lot.

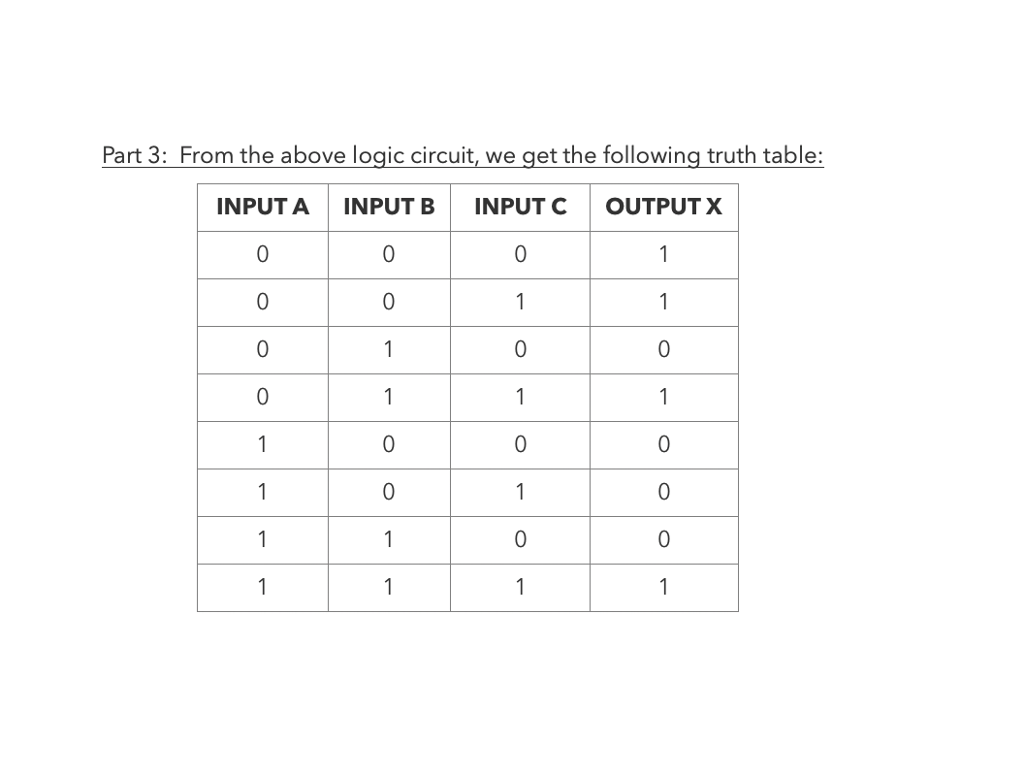

the question is to make sketch of possible logic circuts from the truth table

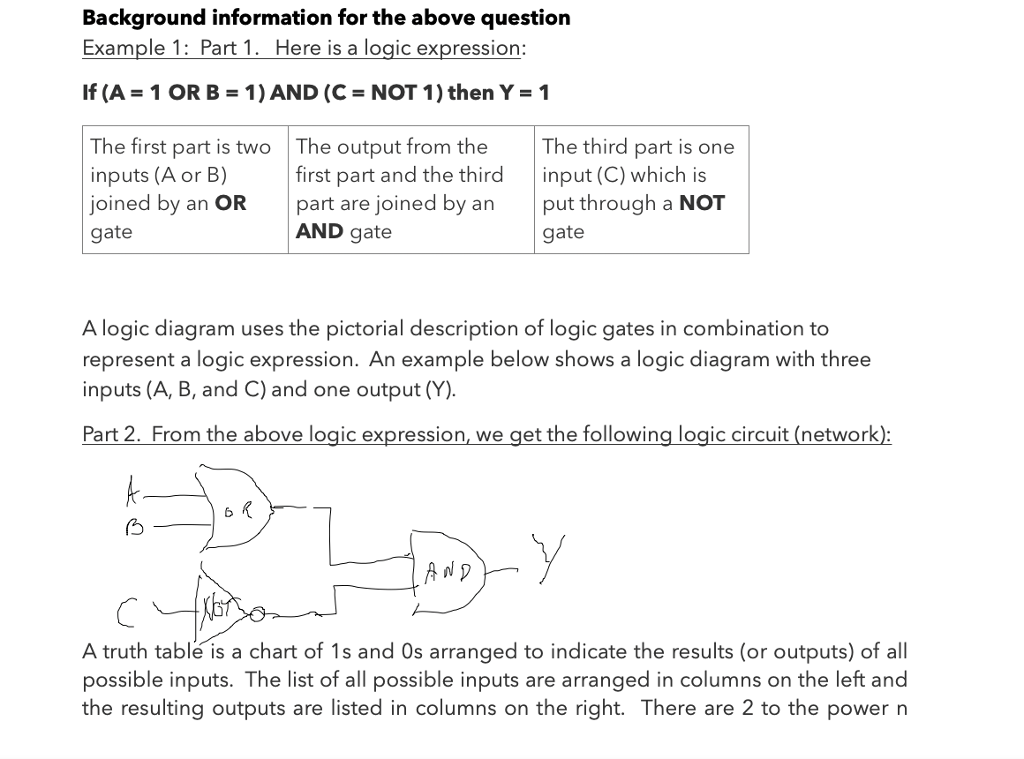

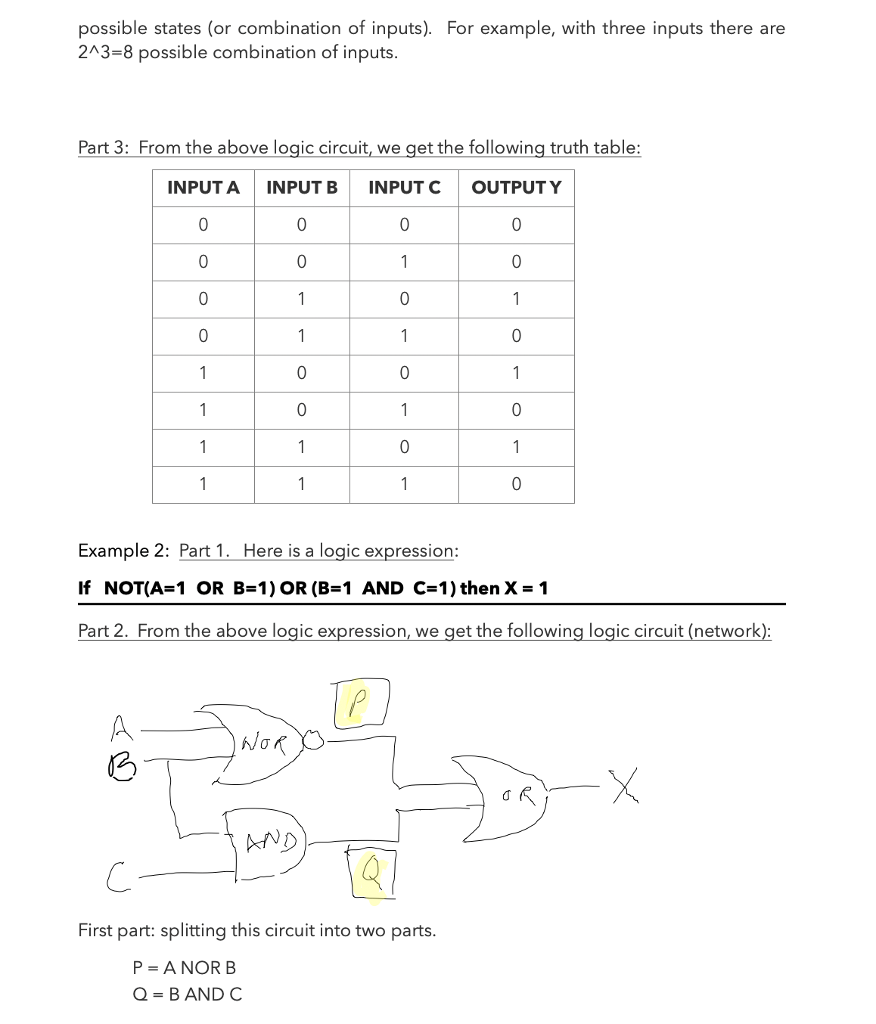

Background information for the above question Example 1: Part 1. Here is a logic expression: If (A-1 OR B-1) AND (C = NOT 1 ) then Y-1 The first part is two The output from the inputs (A or B) joined by an OR gate The third part is one first part and the third input (C) which is part are joined by an put through a NOT AND gate gate A logic diagram uses the pictorial description of logic gates in combination to represent a logic expression. An example below shows a logic diagram with three inputs (A, B, and C) and one output (Y). Part 2. From the above logic expression, we get the following logic circuit (network 6 A truth table is a chart of 1s and Os arranged to indicate the results (or outputs) of all possible inputs. The list of all possible inputs are arranged in columns on the left and the resulting outputs are listed in columns on the right. There are 2 to the power n
