Question: I NEED THE THIRD ( # 3 / 1 0 . 3 ) QUESTION ANSWERED PLEASE QUESTION 1 0 . 1 Consider a low -

I NEED THE THIRD (#3/10.3) QUESTION ANSWERED PLEASE
QUESTION 10.1

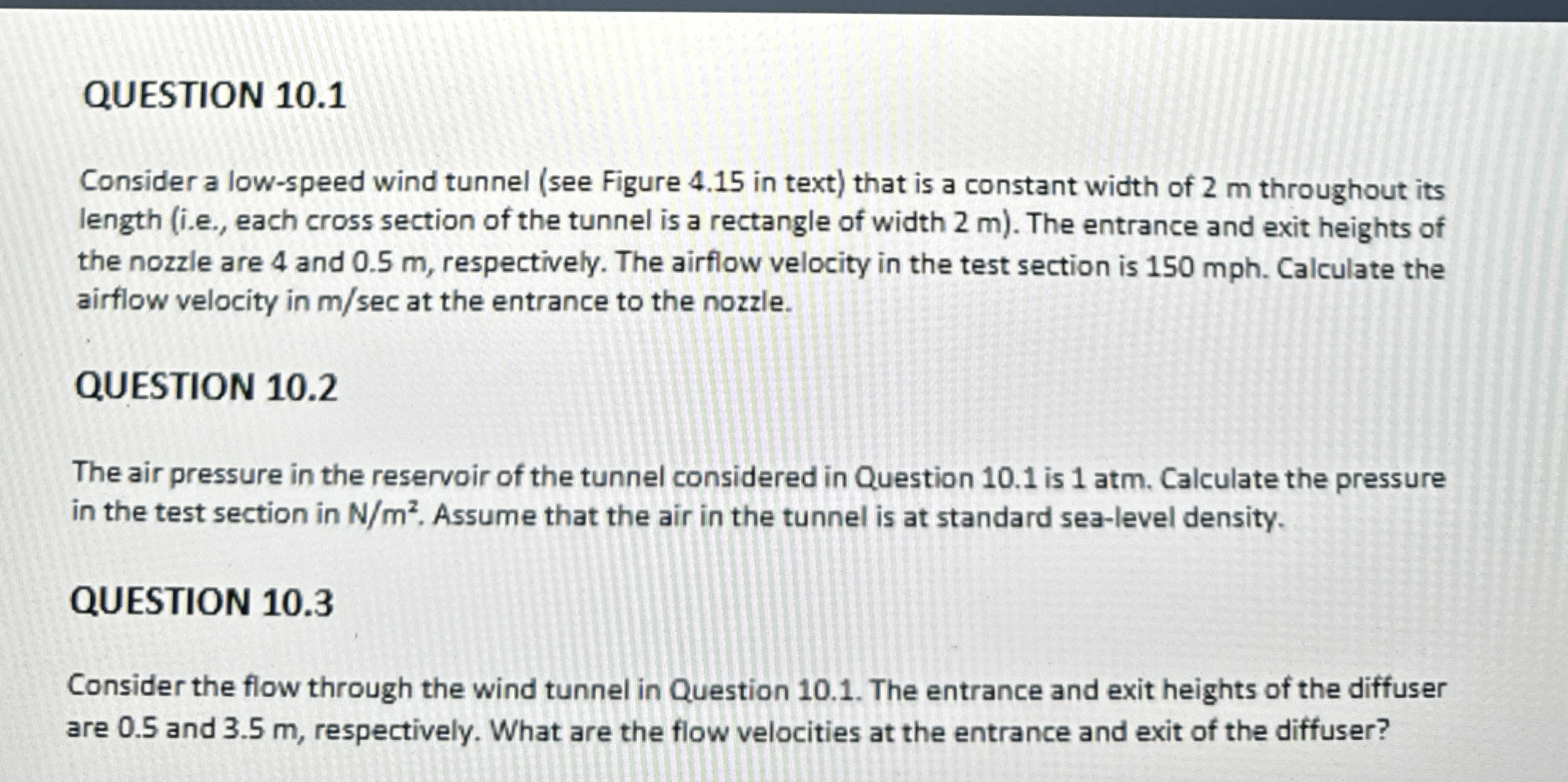

Consider a low-speed wind tunnel (see Figure 4.15 in text) that is a constant width of 2 m throughout its length (i.e., each cross section of the tunnel is a rectangle of width 2 m ). The entrance and exit heights of the nozzle are 4 and 0.5 m , respectively. The airflow velocity in the test section is 150 mph . Calculate the airflow velocity in msec at the entrance to the nozzle.
QUESTION 10.2
The air pressure in the reservoir of the tunnel considered in Question 10.1 is 1 atm . Calculate the pressure in the test section in Nm2. Assume that the air in the tunnel is at standard sea-level density.
QUESTION 10.3
Consider the flow through the wind tunnel in Question 10.1. The entrance and exit heights of the diffuser are 0.5 and 3.5 m , respectively. What are the flow velocities at the entrance and exit of the diffuser?
I NEED THE THIRD ( # 3 / 1 0 . 3 ) QUESTION

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
