I really am lost here. I generated a 4 variable truth table and don't know what I am supposed to do with it after that. I don't understand what the difference of R1 and R0 is being they seem to be generated from the same inputs. Could somebody please draw the truth table and kmap to show me how R1 and R0 both end up being different functions? Any help is appreciated. Thank you!

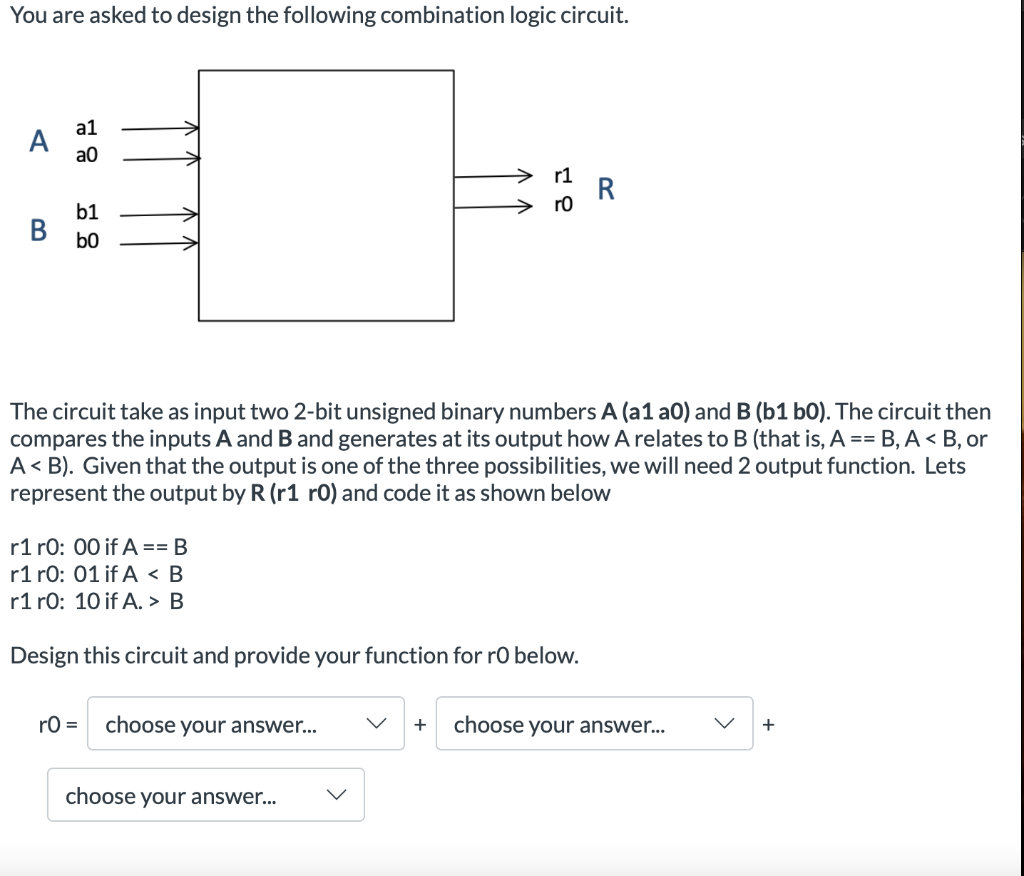

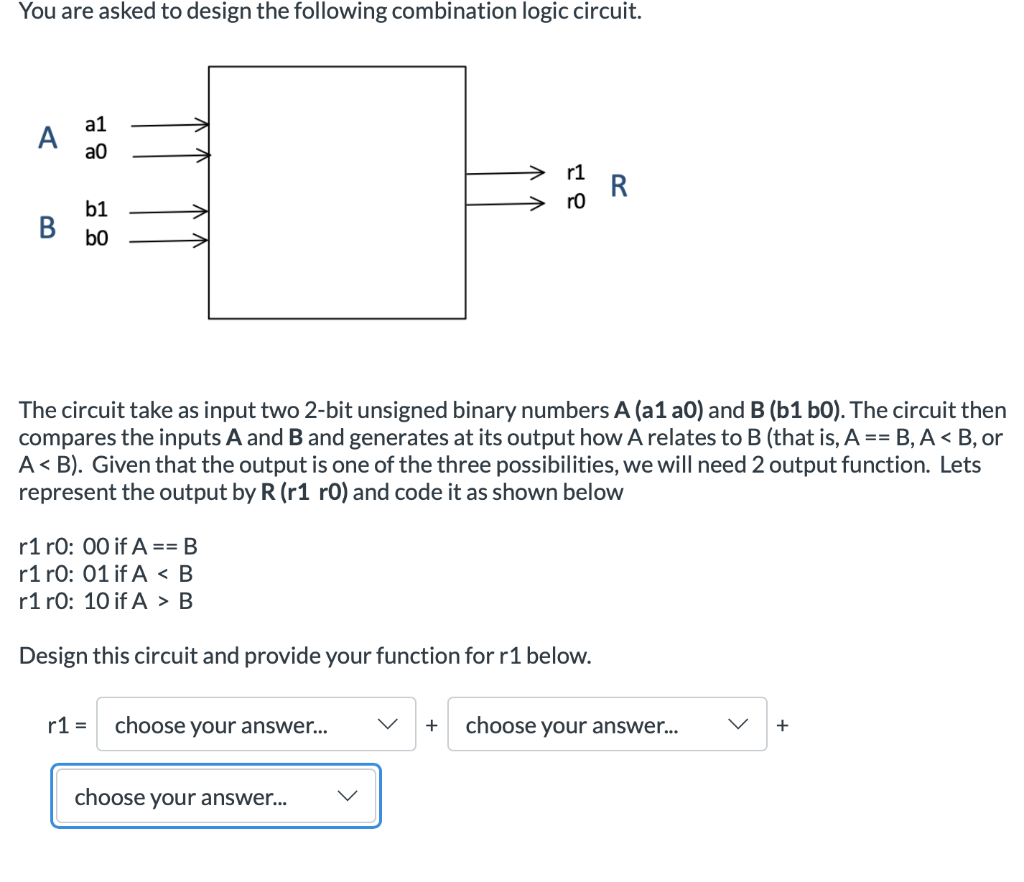

You are asked to design the following combination logic circuit. A a1 ao 1 0 B b1 bo The circuit take as input two 2-bit unsigned binary numbers A (a1 aC) and B (b1 b0). The circuit then compares the inputs A and B and generates at its output how Arelates to B (that is, A == B, A B Design this circuit and provide your function for r1 below. r1 = choose your answer... + choose your answer... + choose your answer... You are asked to design the following combination logic circuit. A a1 ao r1 > ro R B b1 bo The circuit take as input two 2-bit unsigned binary numbers A (a1 a0) and B (b1 b0). The circuit then compares the inputs A and B and generates at its output how Arelates to B (that is, A == B, A B Design this circuit and provide your function for ro below. r0 = choose your answer... + choose your answer... + choose your
